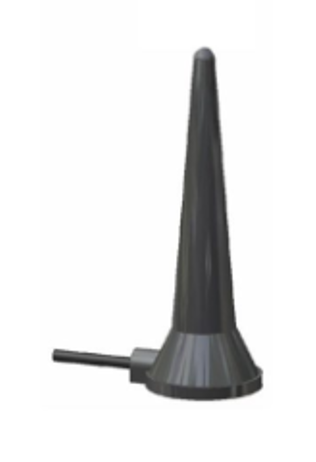

MAGNETIC ANTENNA
| SPECIFICATIONS | |
| Material | Nylon 6 |
| Colour | Black |
| Net weight ( g ): | 100±20 |
| Dimensions ( mm ): | 100±25*Ø29±5 |
| Temperature ( °C ): | -40° – +80° |
| Mounting: | Magnetic |
FREQUENCIES AVAILABLE:
2400 ÷ 2485 MHz – Datasheet
DIRECTIVE ANTENNA

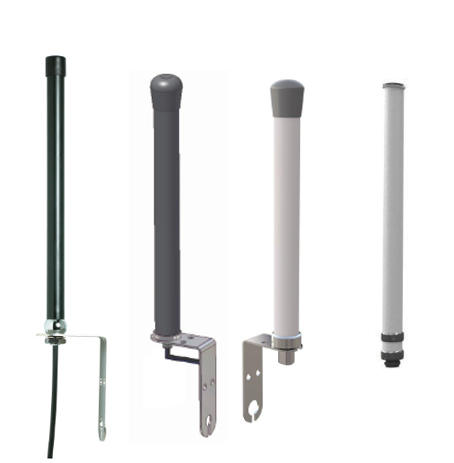

OMNIDIRECTIONAL ANTENNAS
| SPECIFICATIONS | |
| Material | PVC or RW 24 WM 470 or RK15-25 IEMMEQU-3321 CE |
| Colour | Black or Grey or White |
| Net weight ( g ): | From 200 to 400 |
| Dimensions ( mm ): | From 200 to 450 |
| Temperature ( °C ): | -30° – +80° |
| Mounting: | On Pale (rom Ø20 to Ø55 mm) or On Wall |
FREQUENCIES AVAILABLE:
WLAN 2.4 GHz 6 dBi Gain- Datasheet
WLAN 5.8 GHz 8 dBi Gain- Datasheet
WLAN 2.4 – 5.8 GHz 2 – 4 dBi Gain- Datasheet
WLAN 2.4 – 5.8 GHz 6 – 8 dBi Gain- Datasheet
OMNIDIRECTIONAL 5 dBi GAIN ANTENNAS
| SPECIFICATIONS | |
| Material | ABS / PVC / MOPLEN |
| Colour | Grey |
| Net weight ( g ): | 380 |
| Dimensions ( mm ): | 340*50 H=155 |
| Temperature ( °C ): | -30° – +80° |
| Mounting: | On Pale or On Wall |
FREQUENCIES AVAILABLE:
GSM – UMTS – WLAN – Datasheet

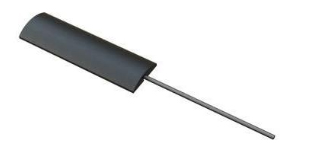

STUB ANTENNAS
| SPECIFICATIONS | |
| Material | Pibiflex Black or Arnitel or Nylon |
| Colour | Black |
| Net weight ( g ): | from 10 to 25 |
| Height ( mm ): | from 60 to 90 Height |
| Diameter (mm): | 12 mm. |
| Temperature ( °C ): | -30° – +80° |
FREQUENCIES AVAILABLE:
WLAN 2.4 GHz – Datasheet – Datasheet – Datasheet
WLAN 5.8 GHz – Datasheet
HANDSET 2.4 GHz – Datasheet

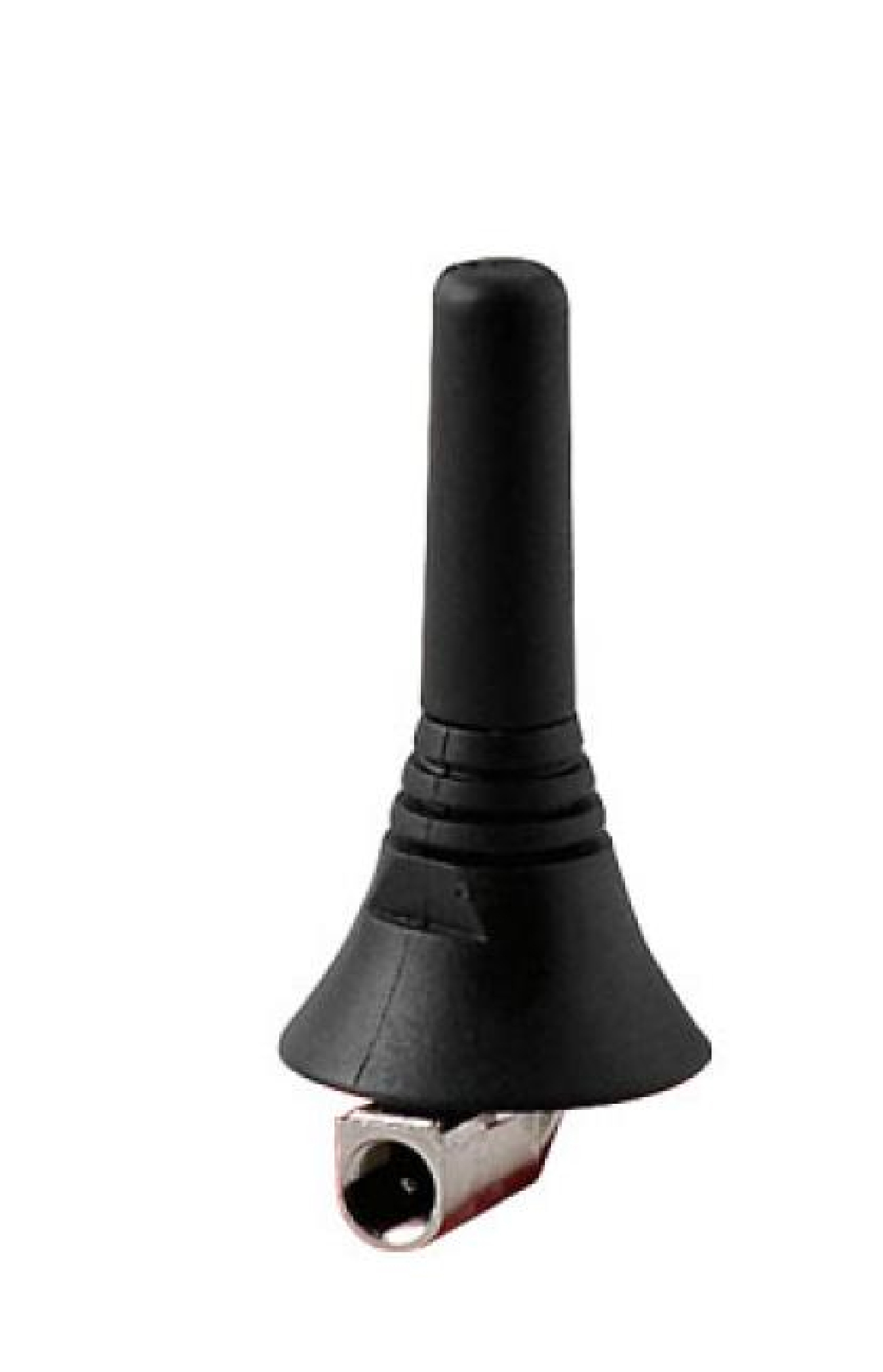

BTN ANTENNAS
| SPECIFICATIONS | |
| Material | Hytrel or Sipolprene 35180 |
| Colour | Black |
| Net weight ( g ): | from 35 to 80 |
| Dimensions ( mm ): | H: from 37 to 315 mm – Ø34 |
| Temperature ( °C ): | -30° – +80° |
| Base Connector: | FME m. |
FREQUENCIES AVAILABLE:
2.4 GHz – Datasheet

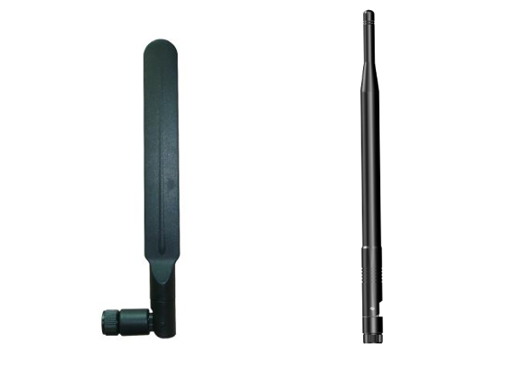

SWIVEL AND RUBBER DUCK ANTENNAS
| SPECIFICATIONS | |
| Material | ABS |
| Colour | Black |
| Net weight ( g ): | from 23 to 35 |
| Dimensions ( mm ): | H: from 160 to 295 – D: 13mm |
| Temperature ( °C ): | -40° – +70° |
| Type of Antenna: | Equipment for terminal |
FREQUENCIES AVAILABLE:
WLAN 2.4 GHz Rubber Duck with SMA m. – Datasheet
WLAN 2.4 – 5.8 GHz Rubber Duck – Datasheet – Datasheet
WLAN 2.4 – 5.8 GHz Swivel Antenna with SMA m. r.p. – Datasheet

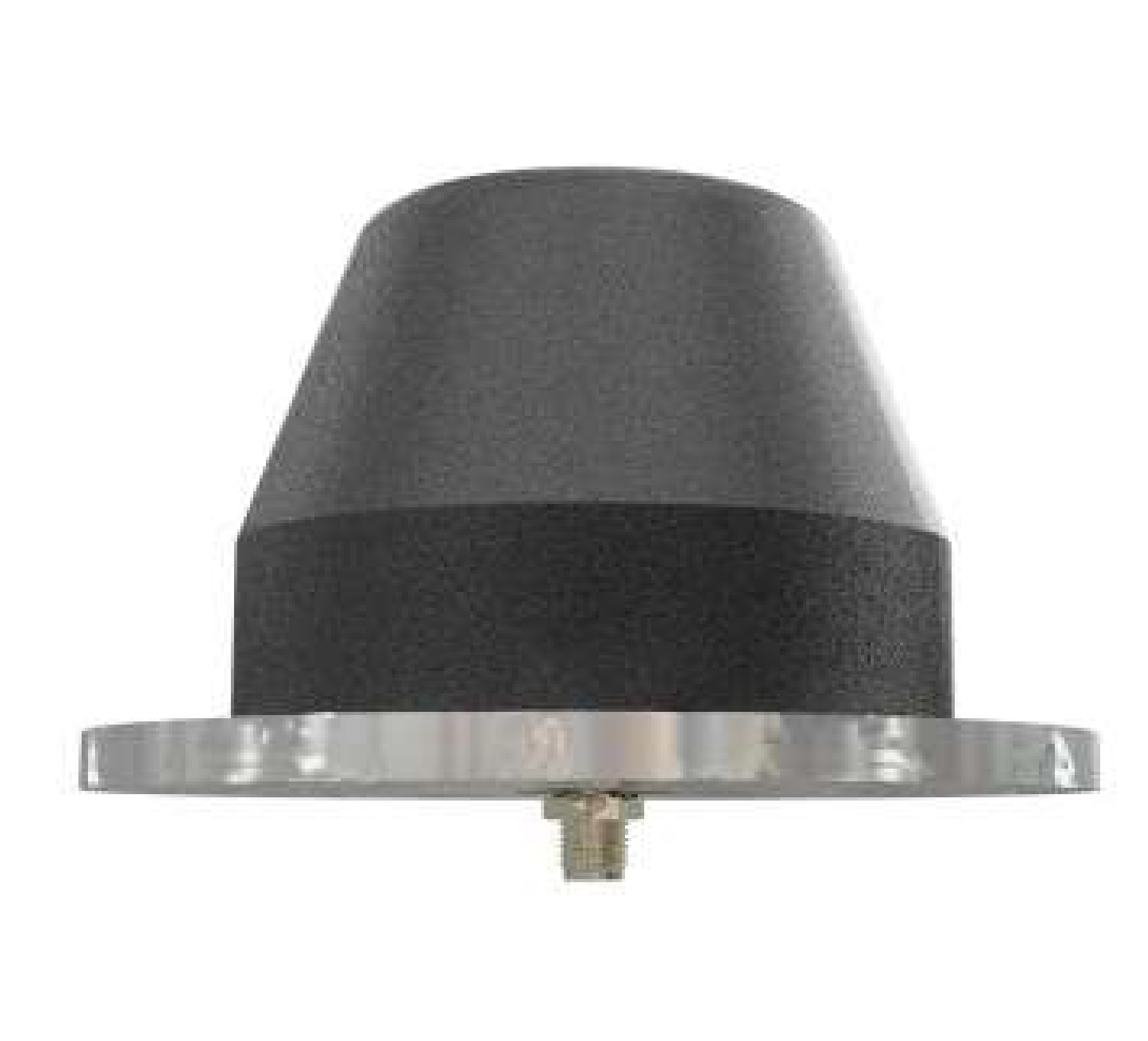

LOW PROFILE ANTENNA
| MATERIAL | |
| Cap | Polyamide 6 Black |
| Base | Zamack |
| Net weight ( g ): | 170 ± |
| Dimensions ( mm ): | Ø73*22 |
| Temperature ( °C ): | -40° – +80° |
| Mounting hole (mm): | Squred: 15.4*15.4 – Round: Ø 16 Adhesive and Magnetic Mounting Available |
FREQUENCIES AVAILABLE:
2.4 GHz – Datasheet
VEHICULAR ANTENNAS
| SPECIFICATIONS | |
| Overmoulding Material | Polypropylene |
| Colour | Black |
| Net weight ( g ): | 80 |
| Lenght ( mm ): | 100*125 |
| Temperature ( °C ): | -30° – +80° |
| Mounting: | Throung Fixing Holes |
FREQUENCIES AVAILABLE:
GSM- UMTS – W-LAN – LTE – Datasheet
