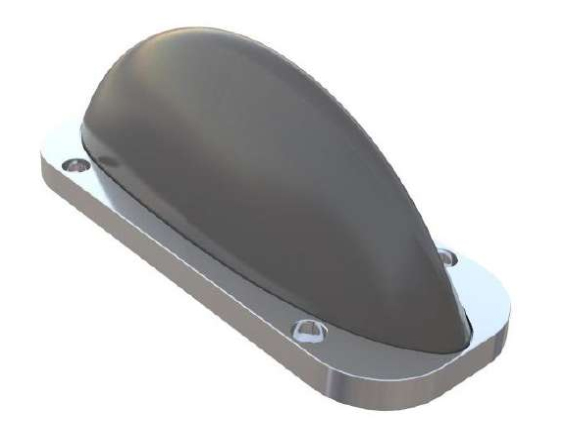

RAILWAY ANTENNAS

RAILWAY ANTENNAS

MATERIAL
Base: Aluminium alloy EN AW-6082 with Surtec650
Radome: ASA
Colour RAL7043 (Dark Grey)
Net weight ( g ): 1000
Dimensions ( mm ): 100x256x105
Temperature ( °C ):  -40° – +85°
IP Class IP68
Mounting Rooftop

FREQUENCIES AVAILABLE:

2G-3G-4G / GPS-GNSS-GALILEO / 2.4 – 5.8 GHz – Datasheet

MIMO 2x 2G-3G-4G / GPS-GNSS-GALILEO / MIMO 2x 2.4 – 5.8 GHz – Datasheet

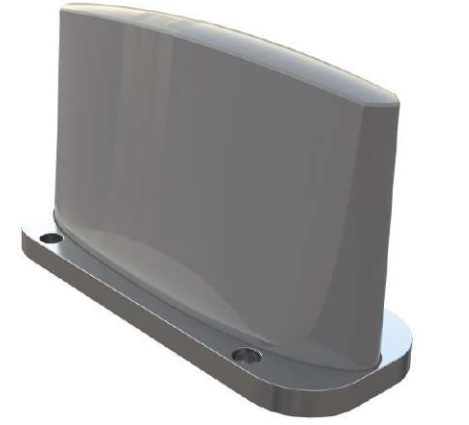

RAILWAY ANTENNAS

MATERIAL
Base: Aluminium alloy EN AW-6082 with Surtec650
Radome: ASA
Colour RAL7043 (Dark Grey)
Net weight ( g ): 1500
Dimensions ( mm ): 100*256*160
Temperature ( °C ):  -40° – +85°
IP Class IP68
Mounting Rooftop


FREQUENCIES AVAILABLE:

TETRA-DVB-T / 2G-3G-4G / 2.4 – 5.8 GHz / GPS-GNSS-GALILEO – Datasheet

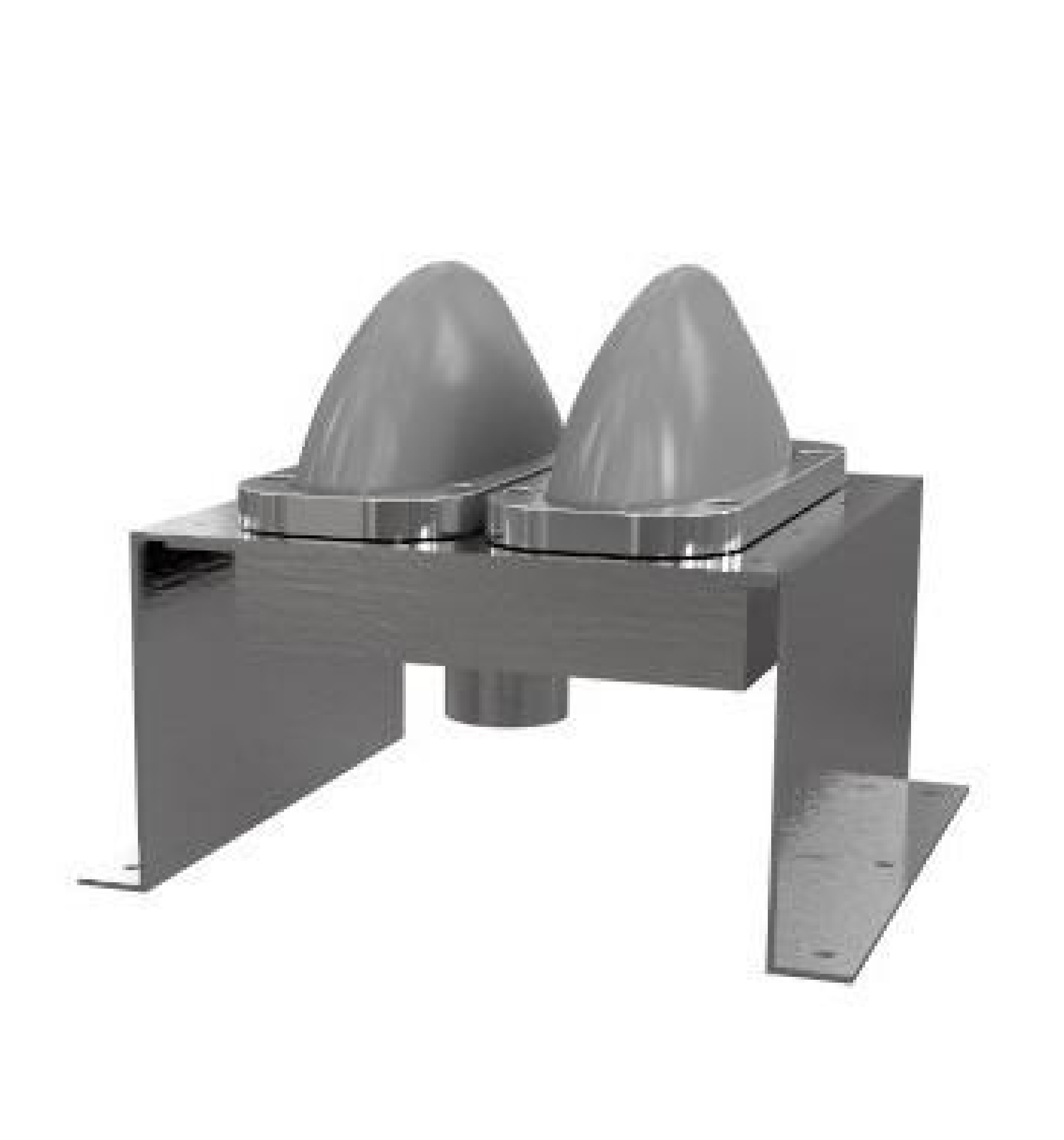

RAILWAY ANTENNAS WITH PLATE SUPPORT

MATERIAL
Base: Aluminium alloy EN AW-6082 with Surtec650
Radome: ASA
Colour RAL7043 (Dark Grey)
Net weight ( g ): 1500
Dimensions ( mm ): 100*256*160
Temperature ( °C ):  -40° – +85°
IP Class IP68
Mounting Rooftop

FREQUENCIES AVAILABLE:

2G-3G-4G-5G / WiFi 2.4-5.8 GHz / GPS-GNSS – Datasheet

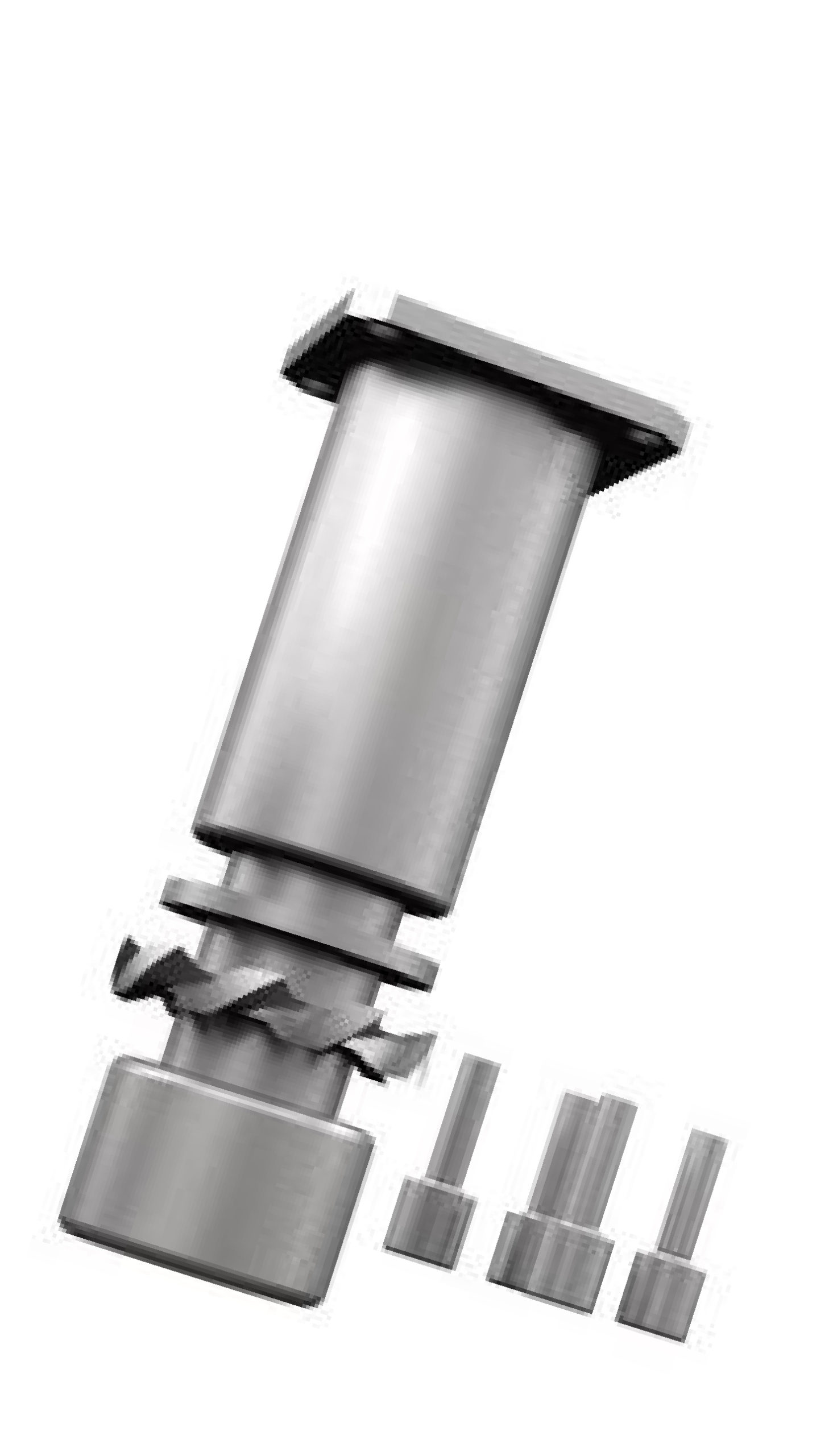

ANTENNA GROUNDING KIT

SPECIFICATIONS
Material Adapter: Nickel-plated brass
Weight : About 0.2 Kg
Material screws M4: Stainless steel
Material screw M16: Stainless steel
Dimension (mm): 47.5 x 32 x 32
Compliance: RoHS 2011/65/EU


FREQUENCIES AVAILABLE:

Datasheet
