YAGI UHF-TETRA-DMR

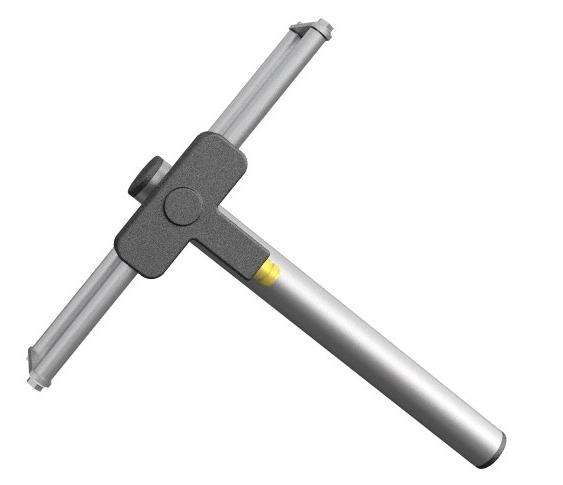

1 ELEMENT YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

400 ÷ 470 MHz – 3 dBi Gain – Datasheet

3 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

300 ÷ 344 MHz – 7 dBi Gain – Datasheet

350 ÷ 430 MHz – 7 dBi Gain – Datasheet

400 ÷ 470 MHz – 7 dBi Gain – Datasheet

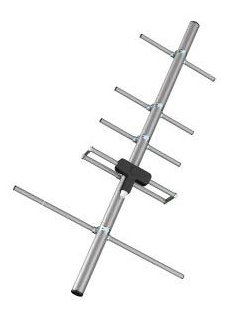

5 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

300 ÷ 344 MHz – 9 dBi Gain – Datasheet

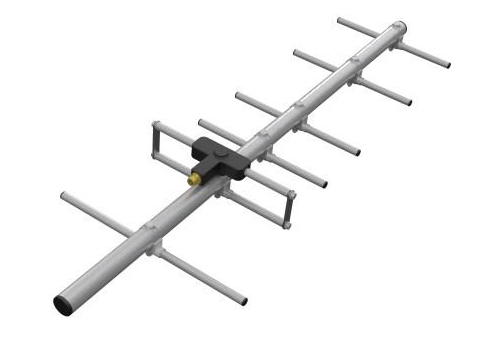

6 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

330 ÷ 350 MHz – 10 dBi Gain – Datasheet

350 ÷ 380 MHz – 10 dBi Gain – Datasheet

380 ÷ 430 MHz – 10 dBi Gain – Datasheet

400 ÷ 430 MHz – 10 dBi Gain – Datasheet

400 ÷ 430 MHz – 11.5 dBi Gain – Datasheet

400 ÷ 445 MHz – 11.5 dBi Gain – Datasheet

430 ÷ 450 MHz STAINLESS STEEL – 10 dBi Gain – Datasheet

434 ÷ 445 MHz STAINLESS STEEL – 11 dBi Gain – Datasheet

435 ÷ 470  – 10 dBi Gain – Datasheet

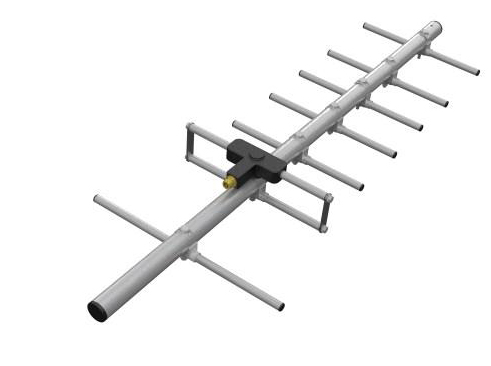

7 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

420 ÷ 460 MHz – 11 dBi Gain – Datasheet

420 ÷ 470 MHz – 11 dBi Gain – Datasheet

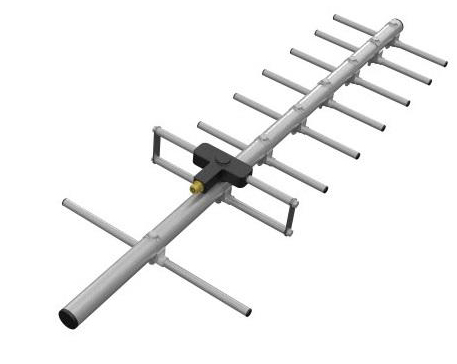

8 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

330 ÷ 375 MHz – 12 dBi Gain – Datasheet

380 ÷ 420 MHz – 12 dBi Gain – Datasheet

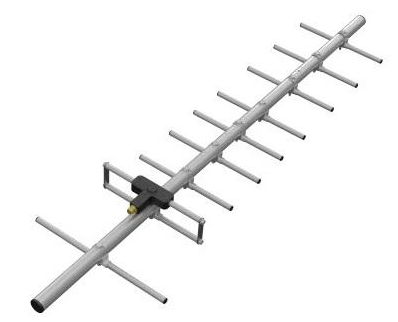

9 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

330 ÷ 344 MHz – 12 dBi Gain – Datasheet

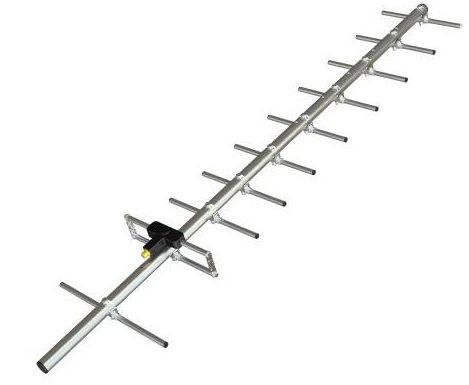

10 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

430 ÷ 450 MHz STAINLESS STEEL – 13 dBi Gain – Datasheet

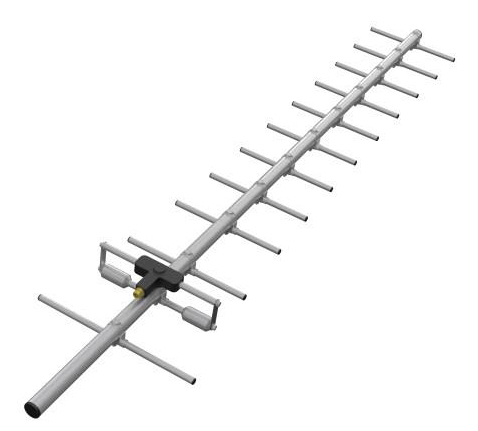

12 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

400 ÷ 470 MHz – 13 dBi Gain – Datasheet

800 MHz

3 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

870 ÷ 930 MHz – 7 dBi Gain – Datasheet

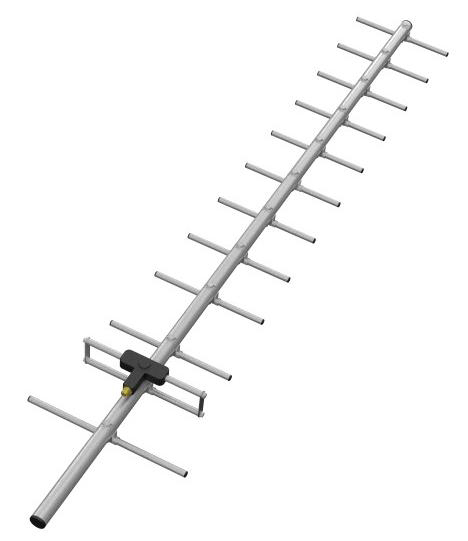

12 ELEMENTS YAGI ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

870 ÷ 930 MHz – 13 dBi Gain – Datasheet

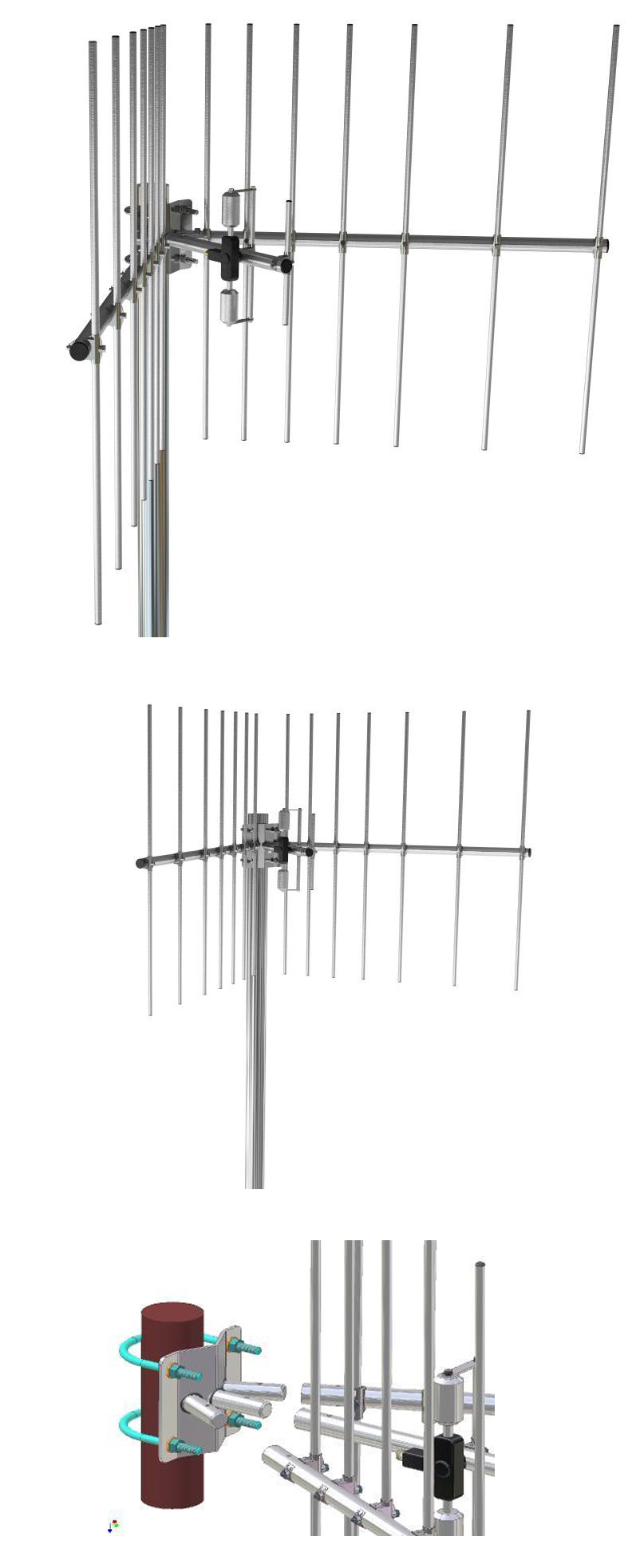

DIRECTIVE CORNER ANTENNA

DIRECTIVE CORNER ANTENNA

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical or Horizontal
Connector N-female
Mounting On masts from 60 to 115 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

320 ÷ 470 MHz – 13 dBi Gain – Datasheet
