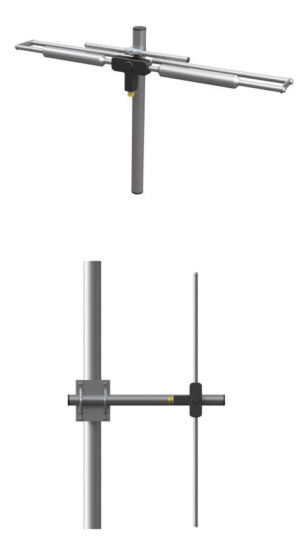

YAGI VHF

DIPOLE ANTENNA 73-74.6 MHz

MATERIAL
Boom	Hot-dip galvanized steel
Elements	Hot-dip galvanized steel
Screws and nuts	Stainless steel
Treatment	Galvanized

TECHNICAL SPECIFICATIONS
Impedance	50 Ohm
Polarization	Vertical or Horizontal
Connector	N-female
Mounting	On masts from 60 to 125 mm diam.
Temperature	-40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

73 ÷ 74.6 MHz – 4.1 dBi Gain – Datasheet

YAGI ANTENNA 1 ELEMENTS 146-174 MHz

MATERIAL
Boom	Hot-dip galvanized steel
Elements	Hot-dip galvanized steel
Screws and nuts	Stainless steel
Treatment	Galvanized

TECHNICAL SPECIFICATIONS
Impedance	50 Ohm
Polarization	Vertical or Horizontal
Connector	N-female
Mounting	On masts from 60 to 125 mm diam.
Temperature	-40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

146 ÷ 174 MHz – 2.14 dBi Gain – Datasheet

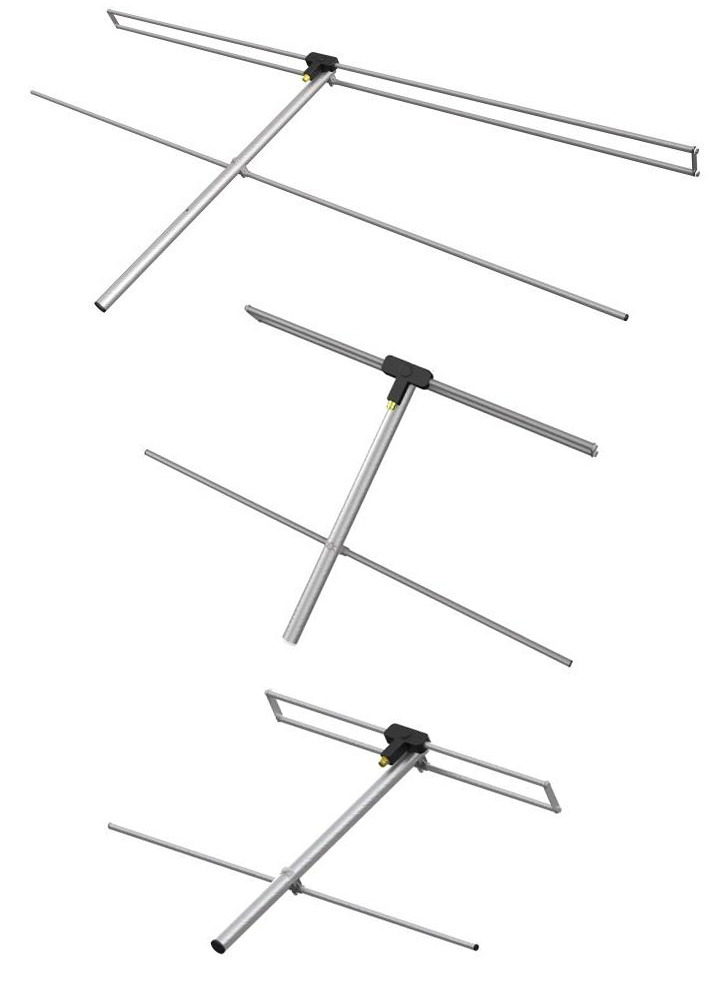

1 ELEMENT YAGI ANTENNA

MATERIAL
Boom	Aluminiun alloy EN AW-6082
Elements	Aluminiun alloy EN AW-6060
Screws and nuts	Stainless steel
Treatment	Surtec650 ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance	50 Ohm
Polarization	Vertical or Horizontal
Connector	N-female
Mounting	On masts from 33 to 60 mm diam.
Temperature	-40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

76 ÷ 80 MHz – 3 dBi Gain – Datasheet

140 ÷ 174 MHz – 3 dBi Gain – Datasheet

140 ÷ 174 MHz STAINLESS STEEL – 3 dBi Gain – Datasheet

2 ELEMENTS YAGI ANTENNA

MATERIAL
Boom	Aluminiun alloy EN AW-6082
Elements	Aluminiun alloy EN AW-6060
Screws and nuts	Stainless steel
Treatment	Surtec650 ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance	50 Ohm
Polarization	Vertical or Horizontal
Connector	N-female
Mounting	On masts from 33 to 60 mm diam.
Temperature	-40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

70 ÷ 76 MHz – 5 dBi Gain – Datasheet

76 ÷ 78 MHz – 7 dBi Gain – Datasheet

154 ÷ 174 MHz – 5 dBi Gain – Datasheet

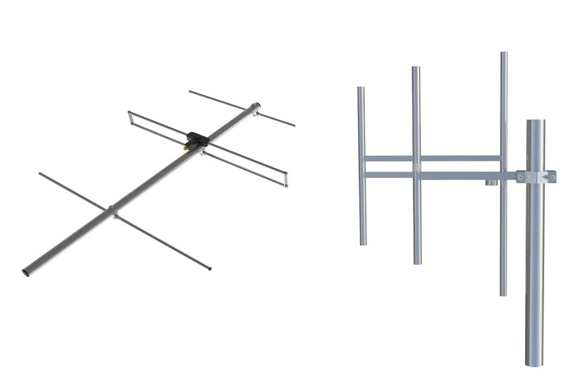

3 ELEMENTS YAGI ANTENNA

MATERIAL
Boom	Aluminiun alloy EN AW-6082
Elements	Aluminiun alloy EN AW-6060
Screws and nuts	Stainless steel
Treatment	Surtec650 ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance	50 Ohm
Polarization	Vertical or Horizontal
Connector	N-female
Mounting	On masts from 33 to 60 mm diam.
Temperature	-40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

70 ÷ 76 MHz – 7 dBi Gain – Datasheet

76 ÷ 79 MHz – 7 dBi Gain – Datasheet

140 ÷ 156 MHz – 7 dBi Gain – Datasheet

146 ÷ 174 MHz – 4 dBi Gain GALVANIZED STEEL – Datasheet

147 ÷ 167 MHz – 7 dBi Gain – Datasheet

154 ÷ 174 MHz – 7 dBi Gain – Datasheet

4 ELEMENTS YAGI ANTENNA

MATERIAL
Boom	Aluminiun alloy EN AW-6082
Elements	Aluminiun alloy EN AW-6060
Screws and nuts	Stainless steel
Treatment	Surtec650 ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance	50 Ohm
Polarization	Vertical or Horizontal
Connector	N-female
Mounting	On masts from 33 to 60 mm diam.
Temperature	-40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

147 ÷ 167 MHz – 9 dBi Gain – Datasheet

154 ÷ 174 MHz – 9 dBi Gain – Datasheet

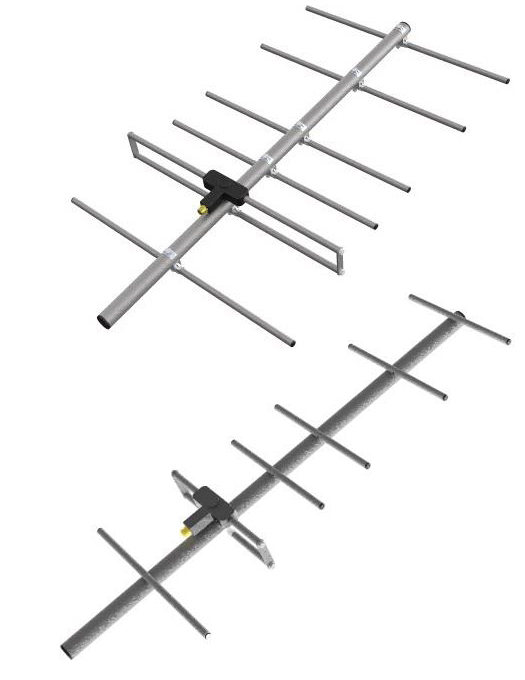

6 ELEMENTS YAGI ANTENNA

MATERIAL
Boom	Aluminiun alloy EN AW-6082
Elements	Aluminiun alloy EN AW-6060
Screws and nuts	Stainless steel
Treatment	Surtec650 ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance	50 Ohm
Polarization	Vertical or Horizontal
Connector	N-female
Mounting	On masts from 33 to 60 mm diam.
Temperature	-40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

147 ÷ 167 MHz – 10 dBi Gain – Datasheet

164 ÷ 174 MHz – 10 dBi Gain – Datasheet

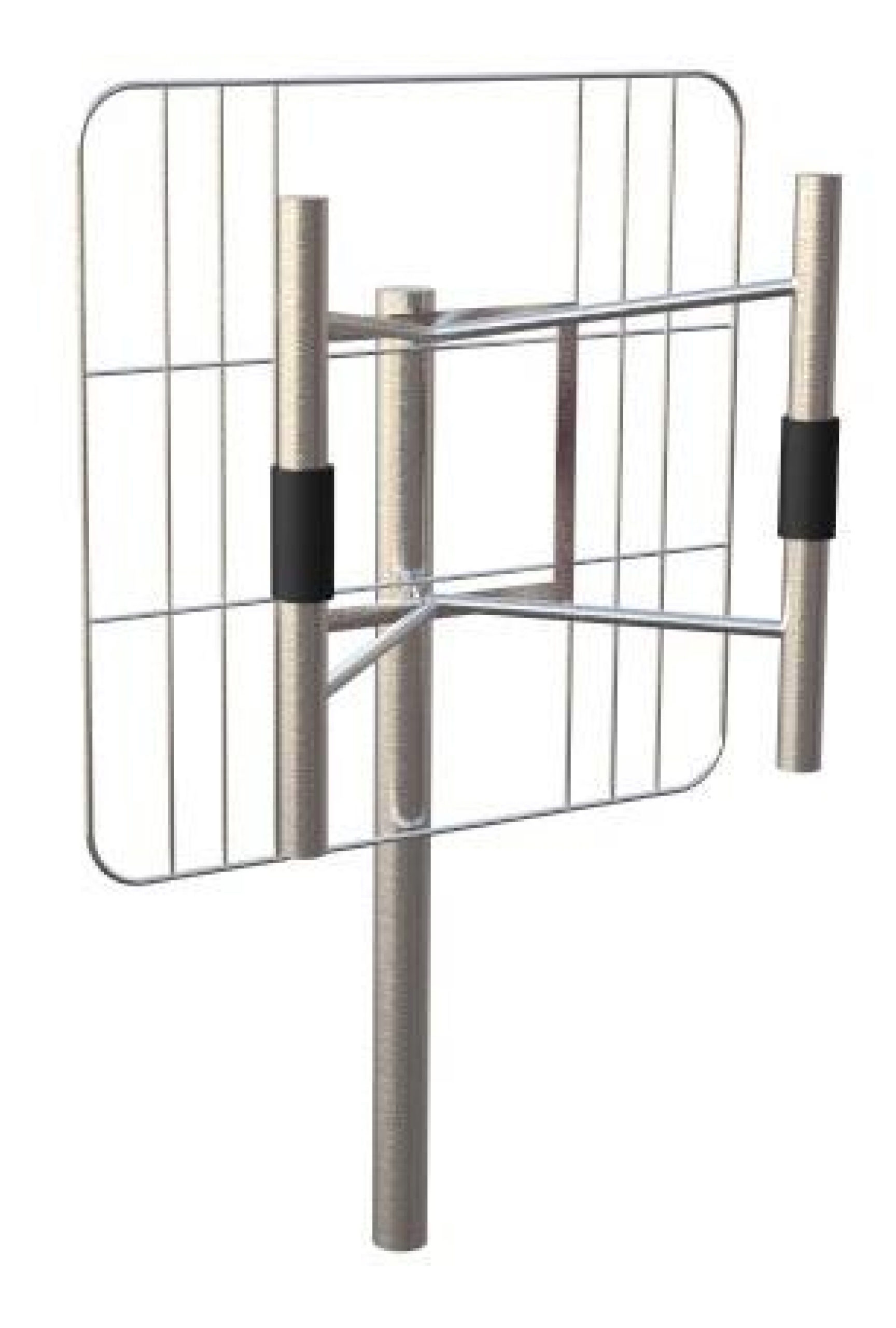

PANEL DIRECTIONAL ANTENNA

SPECIFICATIONS
Material	Hot-dip galvanized steel
Screws and nuts	Stainless steel
Impedance	50 Ohm
Polarization	Vertical or Horizontal
Connector	N-female
Mounting	On masts from 60 to 125 mm diam.
Temperature	-40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

146 ÷ 174 MHz – 10 dBi Gain – Datasheet – Datasheet
