MOBILE - M2M

MAGNETIC ANTENNA



SPECIFICATIONS
Material Nylon 6
Colour Black
Net weight ( g ): 100±20
Dimensions ( mm ): 100±25*Ø29±5
Temperature ( °C ): -40° – +80°
Mounting: Magnetic

FREQUENCIES AVAILABLE:

GSM – UMTS with 2500 mm. cable and FME f.  – Datasheet

GSM – UMTS with 2500 mm. cable and SMA m. – Datasheet

LTE 450 ÷ 1800 MHz – Datasheet

LTE 698÷960 / 1710÷2700 MHz – Datasheet

LTE 698-960 / 1710-2700 MHz – Datasheet

LTE 698-960 / 1710-2700 MHz with Magnet Diameter 20 mm – Datasheet

LTE 698-960 / 1710-2700 MHz with Magnet Diameter 20 mm and  5000 mm. cable LMR100 – Datasheet



INSIDE GLASS ANTENNAS



SPECIFICATIONS
Material ABS
Colour Black
Net weight ( g ): 44
Lenght ( mm ): 97*25
Temperature ( °C ): -30° – +80°
Mounting: Adhesive

FREQUENCIES AVAILABLE:

LTE – Datasheet – Datasheet

LTE (without cover) –  Datasheet

LTE MOULDED ANTENNA –  Datasheet

NEW!!! 2G – 3G – LTE – 5G – Datasheet

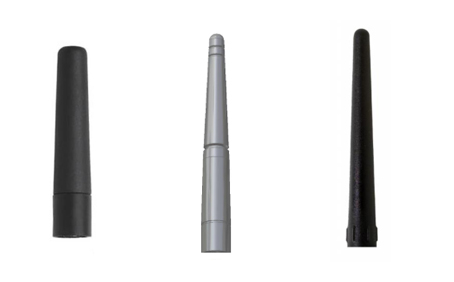

STUB ANTENNAS



SPECIFICATIONS
Material Pibiflex Black or Arnitel or Nylon
Colour Black
Net weight ( g ): from 10 to 25
Height ( mm ): from 60 to 90 Height
Diameter (mm): 12 mm.
Temperature ( °C ): -30° – +80°

FREQUENCIES AVAILABLE:

GSM 900-1800 MHz – Datasheet – Datasheet

GSM – UMTS – Datasheet

LTE 700 ÷ 960 – 1710 ÷ 2700 MHz – Datasheet – Datasheet – Datasheet

LTE 1/2l diple – Datasheet

NEW!!! LTE – 5G – Datasheet



SWIVEL AND RUBBER DUCK ANTENNAS



SPECIFICATIONS
Material ABS
Colour Black
Net weight ( g ): from 23 to 35
Dimensions ( mm ): H: from 160 to 295 – D: 13mm
Temperature ( °C ): -40° – +70°
Type of Antenna: Equipment for terminal

FREQUENCIES AVAILABLE:

LTE Rubber Duck with SMA m. – Datasheet – Datasheet

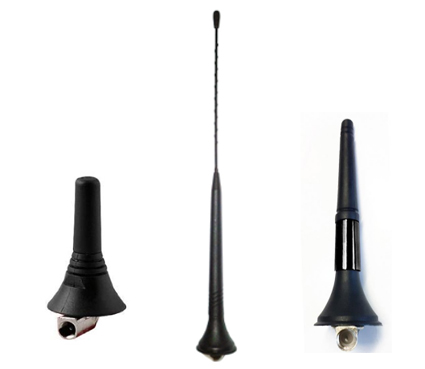

BTN ANTENNAS



SPECIFICATIONS
Material Hytrel or Sipolprene 35180
Colour Black
Net weight ( g ): from 35 to 80
Dimensions ( mm ): H: from 37 to 315 mm – Ø34
Temperature ( °C ): -30° – +80°
Base Connector: FME m.

FREQUENCIES AVAILABLE:

GSM with 5000 mm. cable and mounting bracket – Datasheet – Datasheet

GSM – UMTS  – Datasheet

GSM 1/4 + 1/2 l – Datasheet

LTE – Datasheet

LTE 1/4 + 1/2 l – Datasheet

LOW PROFILE ANTENNA



MATERIAL
Cap Polyamide 6 Black
Base Zamack
Net weight ( g ): 170 ±
Dimensions ( mm ): Ø73*22
Temperature ( °C ): -40° – +80°
Mounting hole (mm): Squred: 15.4*15.4 – Round: Ø 16                 Adhesive and Magnetic Mounting Available

FREQUENCIES AVAILABLE:

GSM – UMTS  – Datasheet

GSM – UMTS – LTE  – Datasheet
