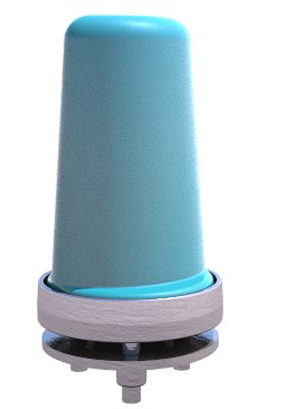

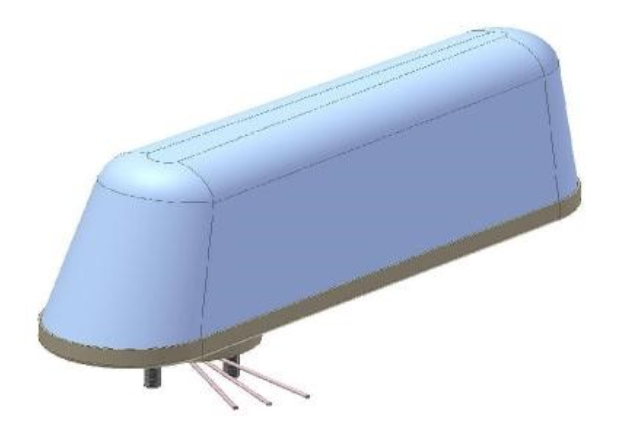

Low profile antennas

MATERIAL
Base:	Aluminium alloy EN AW-6082
Radome:	Polycarbonate
Net weight ( g ):	1000
Dimensions ( mm ):	106*160
Temperature ( °C ):	-40° – +80°
Mounting:	According to FEDERTRASPORTI 00104/5

MOUNTING INSTRUCTION – Datasheet

FREQUENCIES AVAILABLE:

SINGLE BAND:

380 ÷ 470 MHz – Datasheet

400 ÷ 470 MHz – Datasheet – WHITE COLOR – Datasheet

LTE (690 ÷ 960 MHz / 1710 ÷ 2700 MHz) – Datasheet

2 x LTE (690 ÷ 960 MHz / 1710 ÷ 2700 MHz) – Datasheet

MULTIBAND (2 bands):

380 ÷ 485 MHz / GPS-GNSS-GALILEO – Datasheet

380 ÷ 470 MHz / GPS-GNSS-GALILEO – Datasheet

GMS-GPRS-UMTS / 2.4 GHz – Datasheet

GMS- 2x GPRS-UMTS / 2x UMTS – Datasheet

2 x LTE (690 ÷ 960 MHz / 1710 ÷ 2700 MHz) / GPS-GNSS-GALILEO – Datasheet

MULTIBAND (3 bands):

380 ÷ 430 MHz / GMS-GPRS-UMTS / GPS-GNSS-GALILEO – Datasheet

380 ÷ 485 MHz / GPS-GNSS-GALILEO / 2.4 GHz – Datasheet

400 ÷ 445 MHz / LTE (690 ÷ 960 MHz / 1710 ÷ 2700 MHz) / GPS-GNSS-GALILEO – Datasheet

400 ÷ 470 MHz / GPS-GNSS-GALILEO / 2.4 GHz – Datasheet

440 ÷ 470 MHz / GMS-GPRS-UMTS / GPS-GNSS-GALILEO – Datasheet

GMS-GPRS-UMTS / GPS-GNSS-GALILEO / 2.4 GHz – Datasheet

GMS- 2x GPRS-UMTS / GPS-GNSS-GALILEO / 2.4 GHz – Datasheet

LTE (690 ÷ 960 MHz / 1710 ÷ 2700 MHz) / GPS-GNSS-GALILEO/ 2.4 – 5.8 GHz – Datasheet

LTE (690 ÷ 960 MHz / 1710 ÷ 2700 MHz) / GPS-GNSS-GALILEO – Datasheet

LTE (690 ÷ 960 MHz / 1710 ÷ 2700 MHz) / GPS-GNSS-GALILEO/ 2.4 – 5.8 GHz with direct cables – Datasheet

MULTIBAND (4 bands):

380 ÷ 430 MHz / GMS / GPS-GNSS-GALILEO / 2.4 GHz – Datasheet

FREQUENCIES AVAILABLE:

140 ÷ 144 MHz / GSM-UMTS / 2x GPS / 2.4 GHz – Datasheet
