ARRAY SYSTEMS VHF

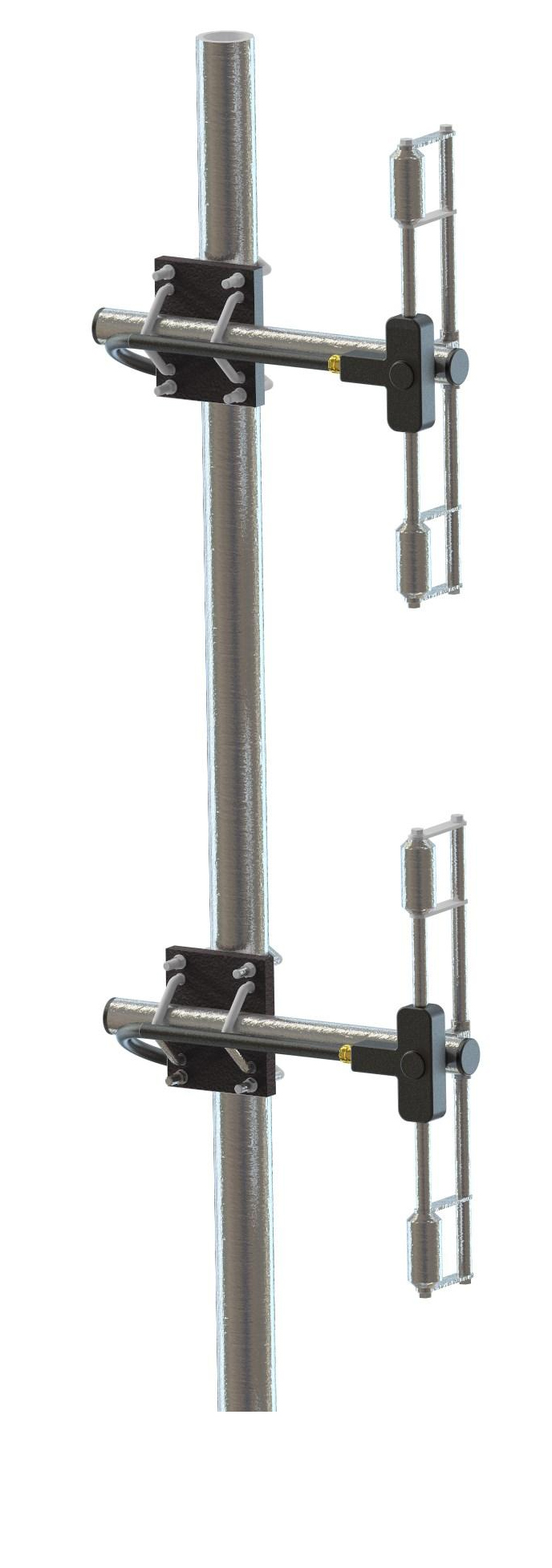

SYSTEM ARRAY WITH DOUBLE FOLDED DIPOLES

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

154 ÷ 174 MHz – 7 dBi Gain – Datasheet

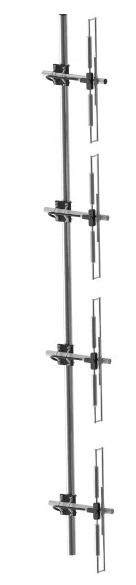

SYSTEM ARRAY WITH FOUR FOLDED DIPOLES

MATERIAL
Boom Aluminiun alloy EN AW-6082
Elements Aluminiun alloy EN AW-6060
Screws and nuts Stainless steel
Treatment Surtec650  ( in specification RoHS )

TECHNICAL SPECIFICATIONS
Impedance 50 Ohm
Polarization Vertical
Connector N-female
Mounting On masts from 33 to 60 mm diam.
Temperature  -40° ÷ +85°

DEVICE EQUIPPED WITH A DC GROUNDED SYSTEM AND CONDENSING HOLE

Frequencies Available:

154 ÷ 174 MHz – 10 dBi Gain – Datasheet
