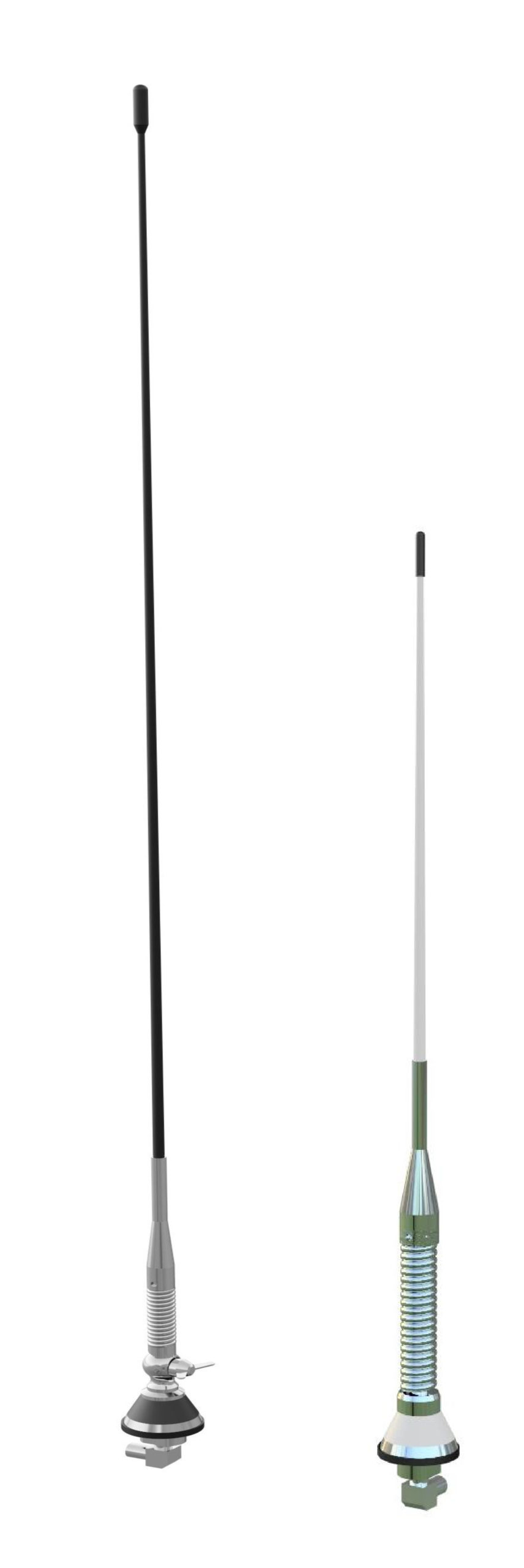

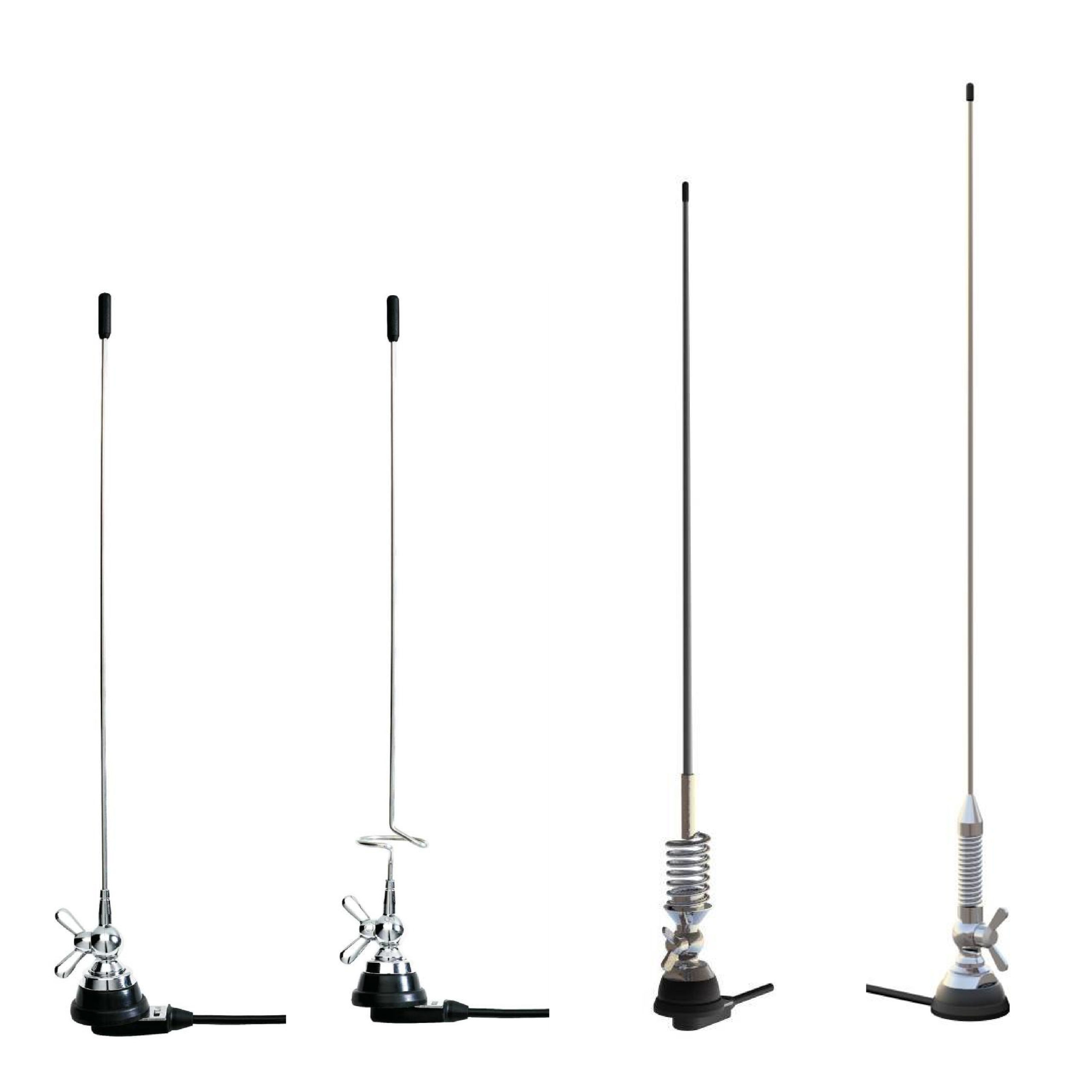

VEHICULAR ANTENNAS
| SPECIFICATIONS | |
| Cap | Self – Extinguishable Moplen |
| Gasket | Kraton G7720 60 Shore |
| Rod: | Inox Steel AISI 302 |
| Temperature ( °C ): | -40° – +80° |
| Mounting hole (mm): | Round: Ø 24 |
FREQUENCIES AVAILABLE:
BASE ANTENNA – Datasheet
49 ÷ 88 MHz / 140 ÷ 174 MHz – Datasheet
62 ÷ 300 MHz – Datasheet
140 ÷ 174 MHz – Datasheet
168 ÷ 173 MHz – Datasheet
VHF / UHF – Datasheet

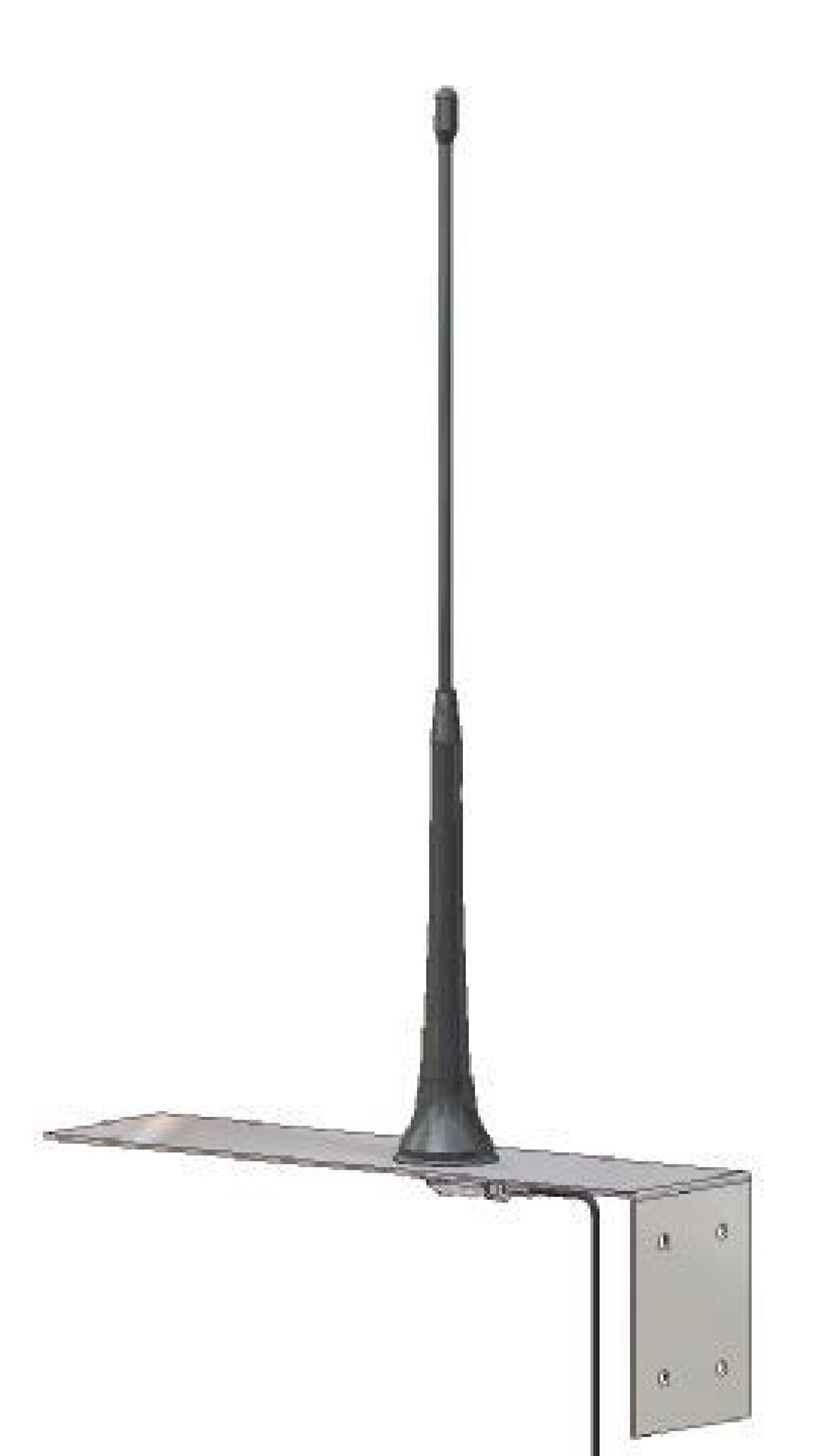

BTN ANTENNAS
| SPECIFICATIONS | |
| Material | Hytrel |
| Colour | Black |
| Net weight ( g ): | from 35 to 80 |
| Dimensions ( mm ): | H: from 27 Ø34 |
| Temperature ( °C ): | -30° – +80° |
| Base Connector: | FME m. |
FREQUENCIES AVAILABLE:
169 ÷ 174 MHz – Datasheet
LOW PROFILE ANTENNA
| MATERIAL | |
| Cap | Polyamide 6 Black |
| Base | Zamack |
| Net weight ( g ): | 250 ± 10 |
| Dimensions ( mm ): | Ø73*22 |
| Temperature ( °C ): | -40° – +80° |
| Mounting : | Magnetic |
FREQUENCIES AVAILABLE:
140 ÷ 176 MHz – Datasheet

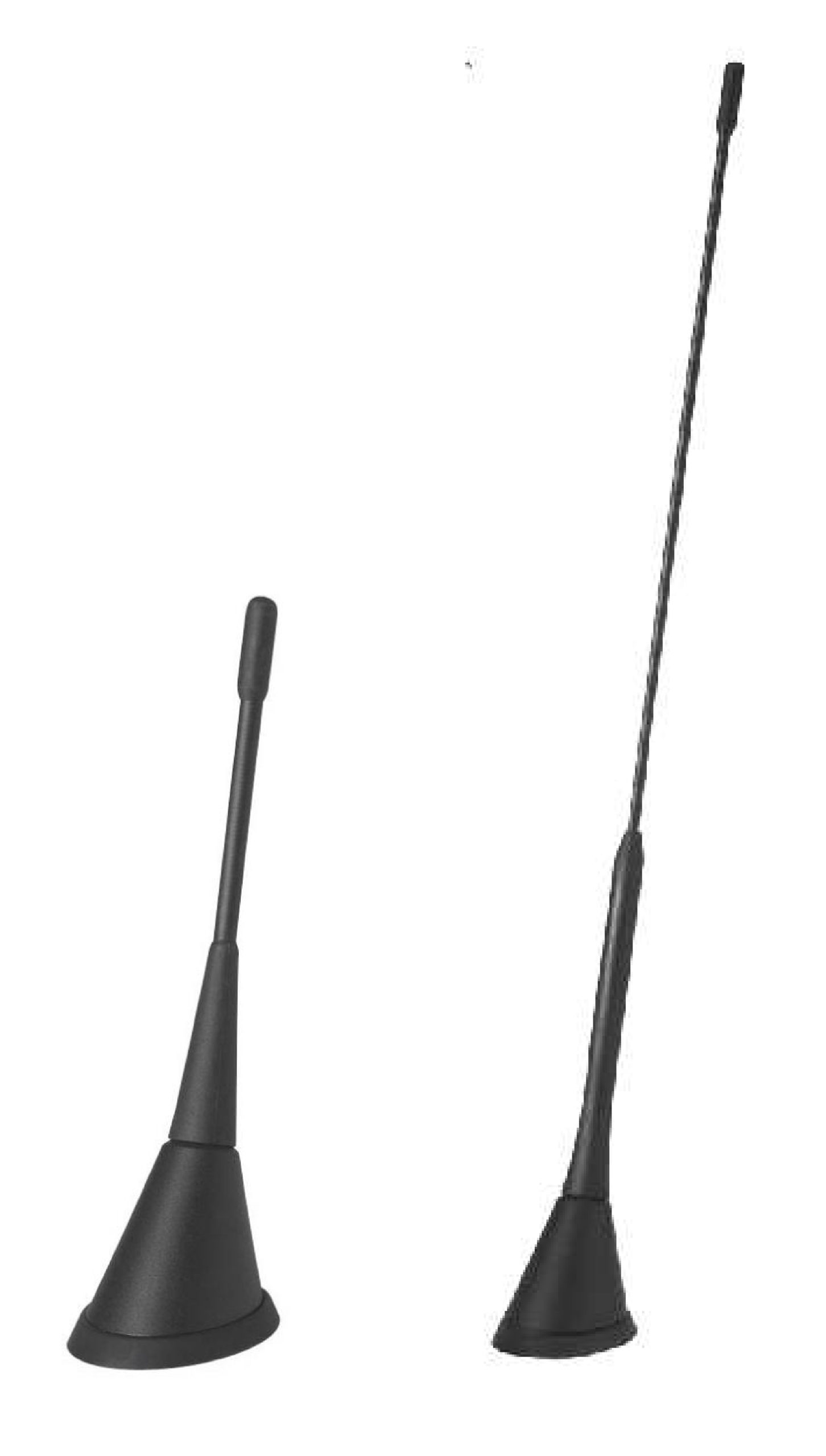

MOBILE ROOF ANTENNA 74°
| MATERIAL | |
| Cap | Polyamide 6 |
| Gasket | Pibiflex 4612 Black |
| Rod: | Pibiflex 4612 or 2564 Black |
| Base Dimensions ( mm ): | Lenght: 95 Width: 52 |
| Mounting Hole | Squred: 15*15 – Round: Ø 19 |
FREQUENCIES AVAILABLE:
76.9 ÷ 79.2 MHz – Datasheet
130 ÷ 230 MHz – Datasheet
164 ÷ 174 MHz – Datasheet
VHF and UHF Rod 5/8l Tunable – Datasheet
NOTE :
Any other frequencies can be available upon request
All the antennas can be supplied with customized extension cables upon request

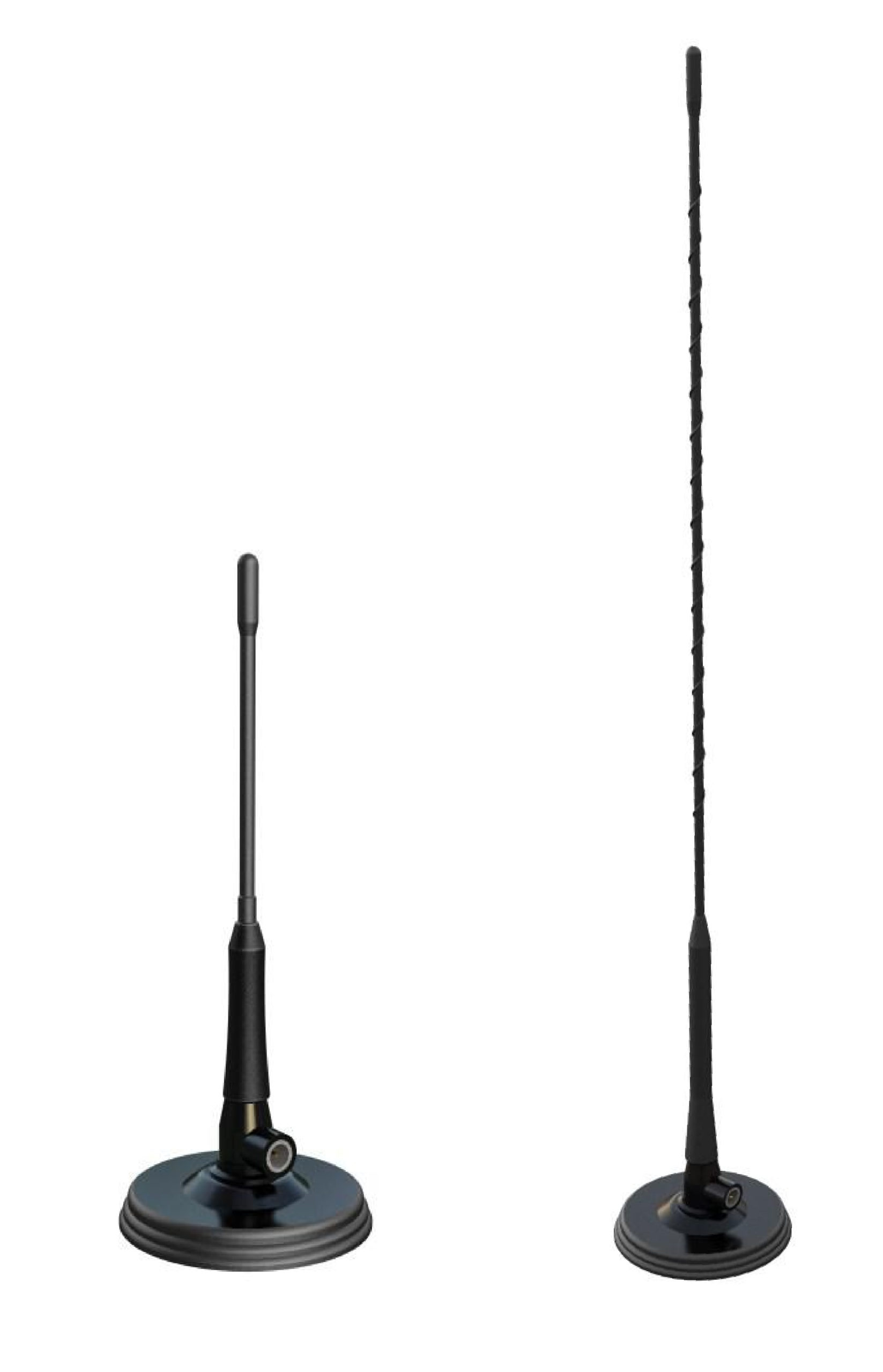

MAGNETIC ANTENNAS with ROD
| SPECIFICATIONS | |
| Base Material: | POM, PE, steel and brass |
| Rod Material | Moplen + Rubber 50 Sh. or Pibiflex 2564 |
| Base Dimension: | ø 85 mm. x 50 mm. |
| Base Connector | FME m. |
