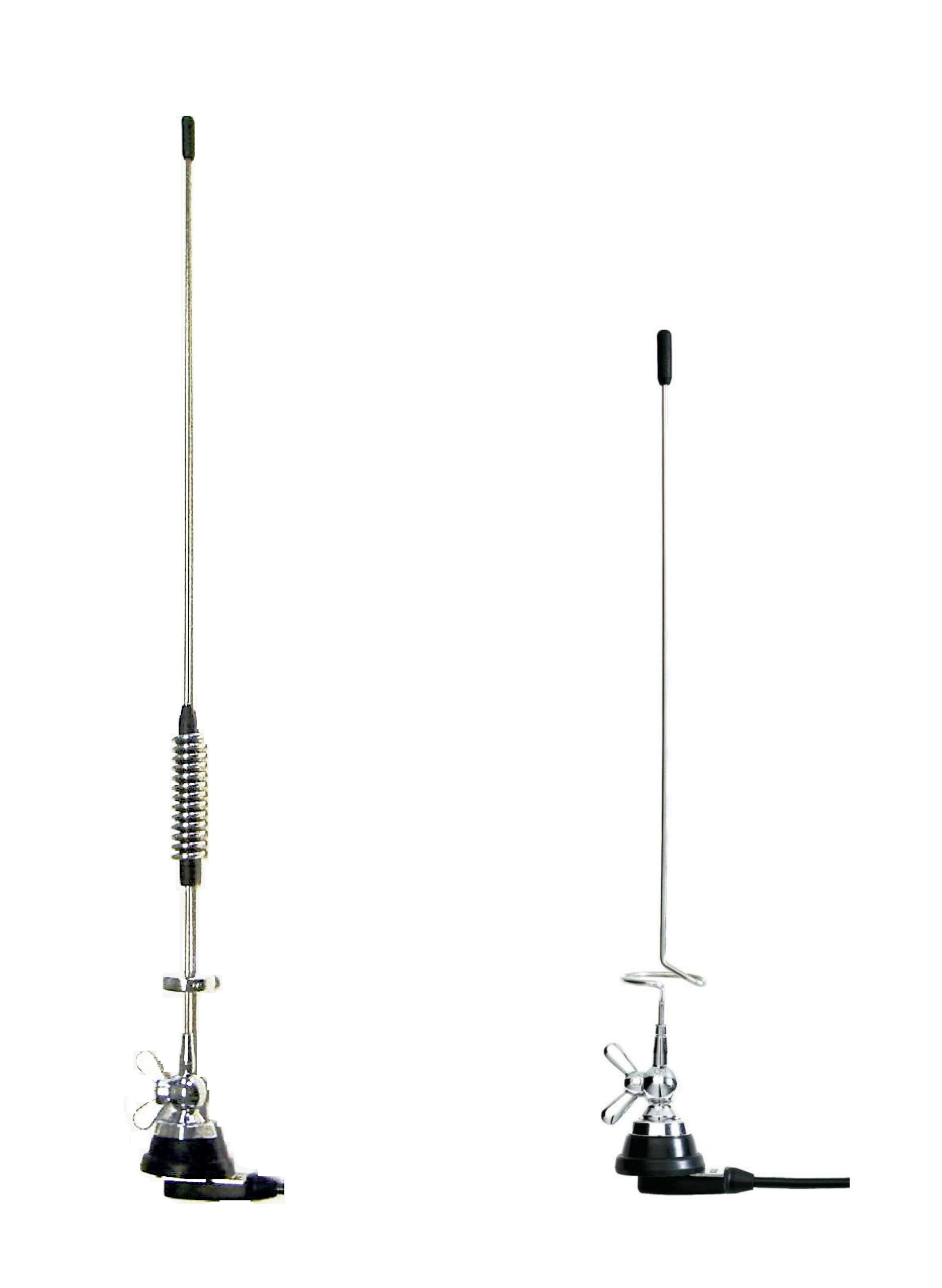

VEHICULAR ANTENNAS
| SPECIFICATIONS | |
| Cap | Self – Extinguishable Moplen |
| Gasket | Kraton G7720 60 Shore |
| Rod: | Inox Steel AISI 302 |
| Temperature ( °C ): | -40° – +80° |
| Mounting hole (mm): | Round: Ø 24 |
FREQUENCIES AVAILABLE:
BASE ANTENNA – – Datasheet
300 ÷ 344 MHz – Datasheet
340 ÷ 380 MHz 1/4l – Datasheet
340 ÷ 360 MHz 5/8l – Datasheet
380 ÷ 430 MHz – Datasheet
435 ÷ 470 MHz – Datasheet
LOW PROFILE ANTENNA
| MATERIAL | |
| Cap | Polyamide 6 Black |
| Base | Zamack |
| Net weight ( g ): | 250 ± 10 |
| Dimensions ( mm ): | Ø73*22 |
| Temperature ( °C ): | -40° – +80° |
| Mounting : | Magnetic |
FREQUENCIES AVAILABLE:
380÷410 MHz 5/8l – Datasheet
MOBILE ROOF ANTENNA 74°
| MATERIAL | |
| Cap | Polyamide 6 |
| Gasket | Pibiflex 4612 Black |
| Rod: | Pibiflex 4612 or 2564 Black |
| Base Dimensions ( mm ): | Lenght: 95 Width: 52 |
| Mounting Hole | Squred: 15*15 – Round: Ø 19 |
FREQUENCIES AVAILABLE:
380 ÷ 430 MHz Rod 1/4l – Datasheet
380 ÷ 430 MHz Rod 1/4l with 5000 mm. Extension Cable and BNC m. – Datasheet
VHF and UHF 380 ÷ 470 MHz Rod 5/8l Tunable – Datasheet
NOTE :
Any other frequencies can be available upon request
All the antennas can be supplied with customized extension cables upon request
MOTORCYCLE ANTENNAS
| SPECIFICATIONS | |
| Base: | Zamack or Galvanized Brass |
| Rod: | PIbiflex 2564 or Fiberglass |
| Temperature ( °C ): | -30° – +80° |
| Mounting hole (mm): |
Squared: 15.4*15.4 Round: Ø 19 or Ø 25 |
FREQUENCIES AVAILABLE:
380 ÷ 430 MHz – Datasheet
410 ÷ 470 MHz – Datasheet
380 ÷ 430 MHz 5/8 WHITE COLOUR – Datasheet
380 ÷ 430 MHz 5/8 BLACK COLOUR – Datasheet

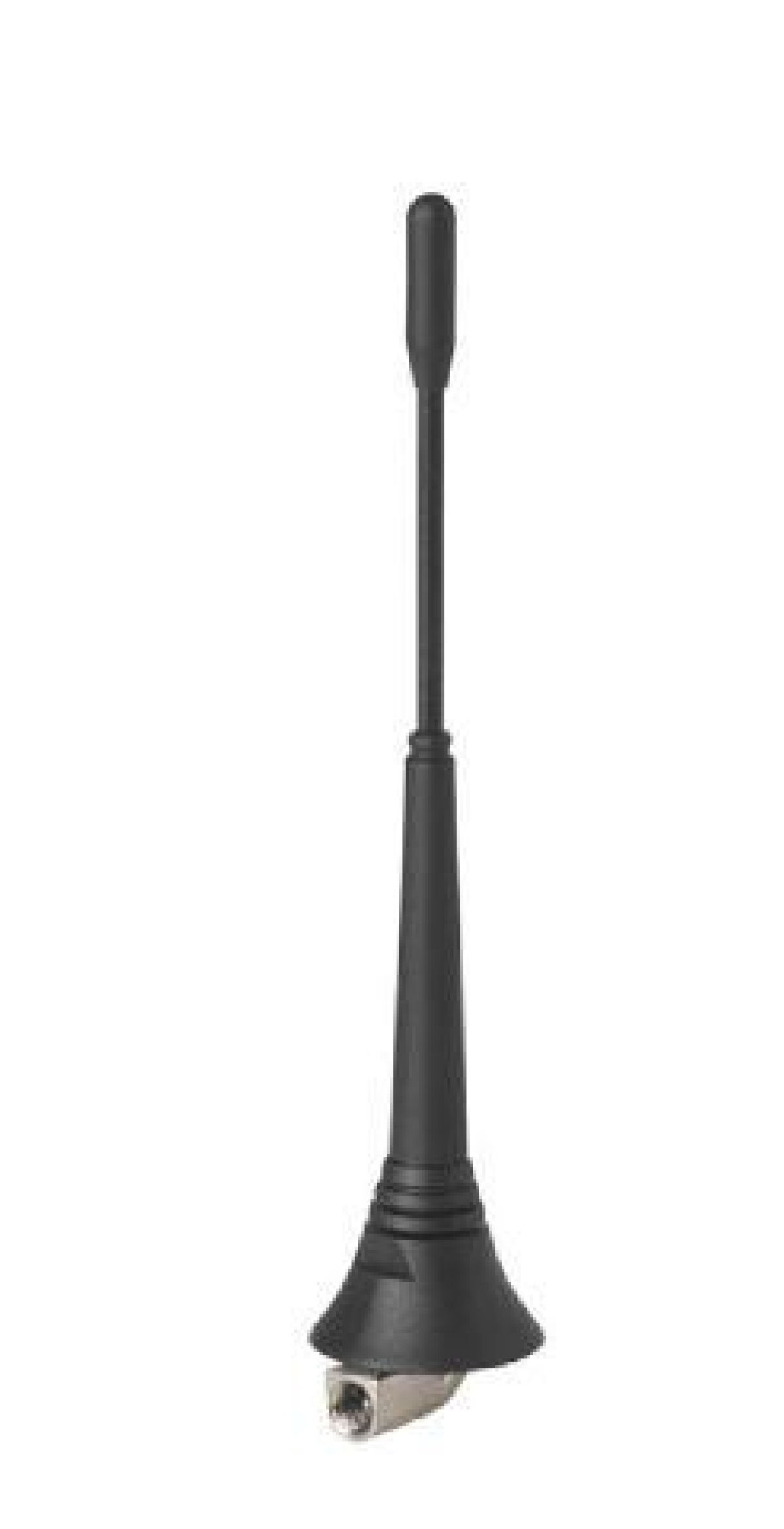

28° FRONT MOUNTING ANTENNA
| MATERIAL | |
| Cap | Polyamide 6 |
| Gasket | Arnitel EP 400 |
| Rod: | Pibiflex 2564 |
| Base Dimensions ( mm ): | Lenght: 60 Width: 45 |
| Mounting Hole | Squred: 15*15 – Round: Ø 19 |
| Temperature (°C): | -30° ÷ + 80° |

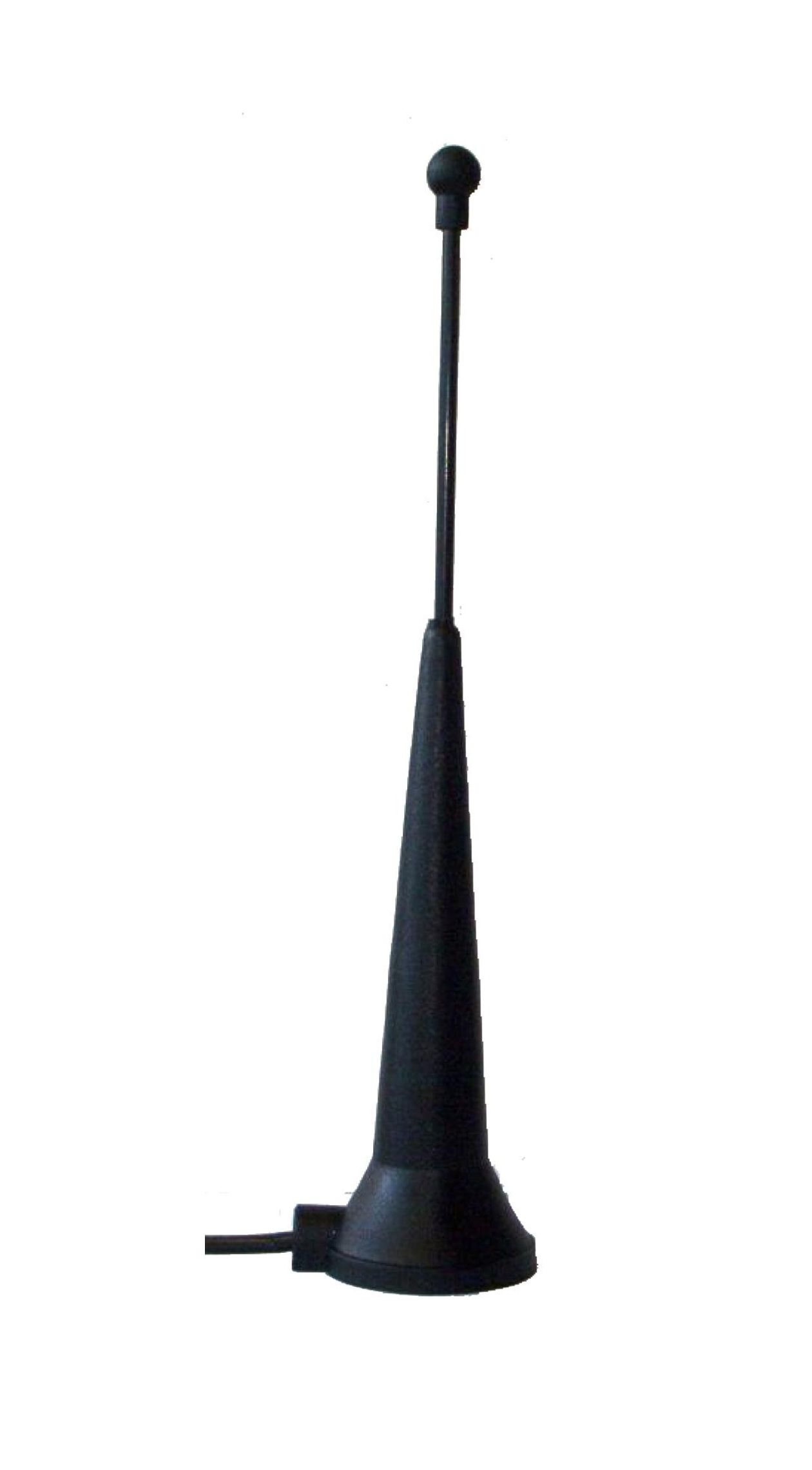

MAGNETIC ANTENNA
| SPECIFICATIONS | |
| Material | Nylon 6 |
| Colour | Black |
| Net weight ( g ): | 100±20 |
| Dimensions ( mm ): | 100±25*Ø29±5 |
| Temperature ( °C ): | -40° – +80° |
| Mounting: | Magnetic |
FREQUENCIES AVAILABLE:
380 ÷ 500 MHz – Datasheet

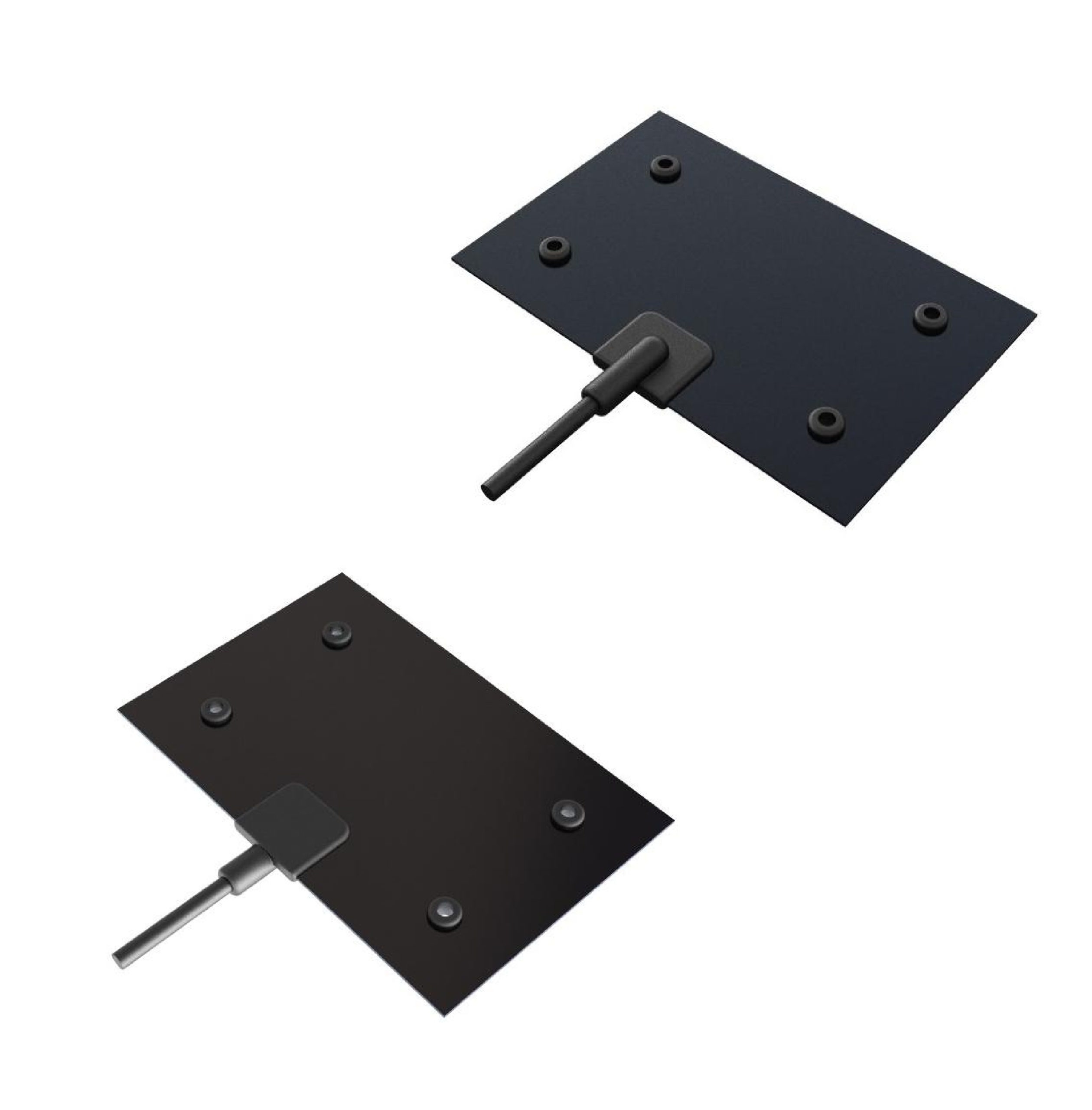

BUMBER ANTENNAS
| SPECIFICATIONS | |
| PCB Material: | FR4 Black Solder |
| Fairlead: | PVC Black |
| Molded : | Technomelt PA658 or Thermelt |
| Dimensions (mm): | 137*90*6 (with Fairlead) |
| Mounting: | Behind bumper of vehicle |
| Protection Class: | IP67 |
FREQUENCIES AVAILABLE:
380 ÷ 410 MHz – Datasheet
380 ÷ 430 MHz with combiner – Datasheet
380 ÷ 430 MHz – Datasheet
STUB ANTENNAS
| SPECIFICATIONS | |
| Material | Pibiflex Black |
| Colour | Black |
| Net weight ( g ): | from 10 to 25 |
| Height ( mm ): | from 60 to 90 Height |
| Diameter (mm): | 12 mm. |
| Temperature ( °C ): | -30° – +80° |
FREQUENCIES AVAILABLE:
440 ÷ 460 MHz – Datasheet
