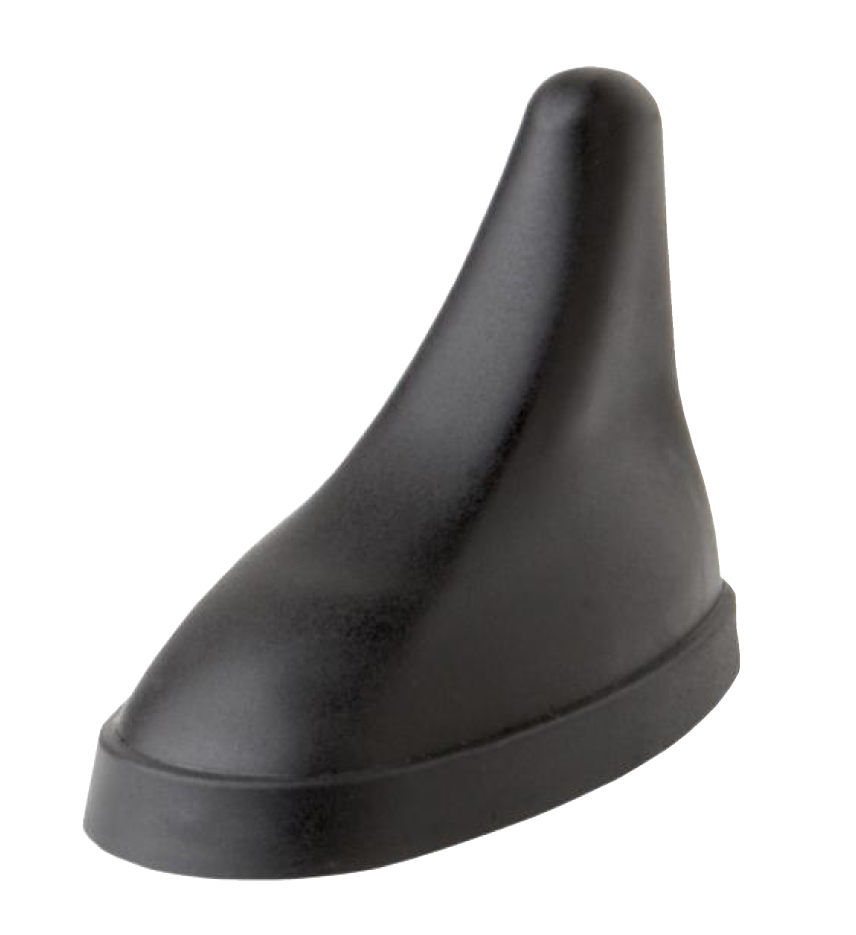

SHARK ANTENNA
| MATERIAL | |
| Cap | Polyamide 6 |
| Gasket | Arnitel EP 400 |
| Net weight ( g ): | 150 |
| Dimensions ( mm ): | 95*52*65 |
| Temperature ( °C ): | -30° – +80° |
| Mounting hole (mm): | Squred: 15*15 – Round: Ø 19 |
FREQUENCIES AVAILABLE:
GSM – UMTS / ACTIVE GPS-GNSS-GALILEO – Datasheet
GSM – UMTS / W-LAN/ GPS-GNSS-GALILEO – Datasheet
GSM – UMTS / AM-FM / GPS-GNSS-GALILEO – Datasheet
LTE / ACTIVE GPS-GNSS-GALILEO – Datasheet
LTE / 2.4GHz – 5.8GHz / ACTIVE GPS-GNSS-GALILEO – Datasheet

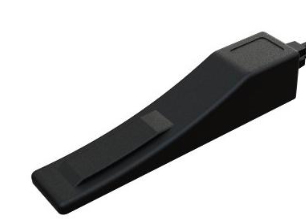

INSIDE PLANAR ANTENNA
| MATERIAL | |
| Cap | Polyamide 6 |
| Colour | Black |
| Net weight ( g ): | 120 |
| Dimensions ( mm ): | 123*25*27 |
| Temperature ( °C ): | -30° – +80° |
| Mounting : | Adhesive |
FREQUENCIES AVAILABLE:
GPS/GSM – Datasheet
GPS/LTE – Datasheet
LTE/WLAN – Datasheet
GPS/GSM/WLAN – Datasheet
GPS/LTE/WLAN – Datasheet
NEW GPS / 5G – Datasheet
NEW GPS / 5G / WLAN – Datasheet

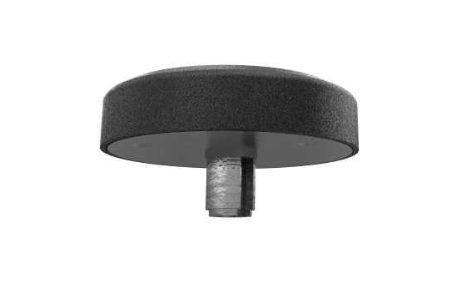

LOW PROFILE ANTENNA
| MATERIAL | |
| Cap | Polyamide 6 Black |
| Base | Zamack |
| Net weight ( g ): | 170 ± |
| Dimensions ( mm ): | Ø73*22 |
| Temperature ( °C ): | -40° – +80° |
| Mounting hole (mm): | Squred: 15.4*15.4 – Round: Ø 16 Adhesive and Magnetic Mounting Available |
FREQUENCIES AVAILABLE:
GSM – UMTS / ACTIVE GPS – Datasheet
GSM – UMTS / ACTIVE GPS (Adhesive Mounting) – Datasheet
GSM – UMTS / ACTIVE GPS (Magnetic Mounting) – Datasheet
GSM – GPRS – UMTS / ACTIVE GPS / W-LAN (450 mm. Cables) – Datasheet
GSM – GPRS – UMTS / ACTIVE GPS / W-LAN (1500 mm. Cables) – Datasheet

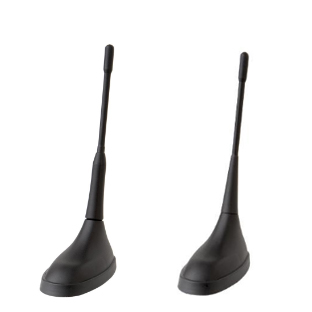

MOBILE ANTENNA with 1/4 l ROD
| MATERIAL | |
| Cap | Polyamide 6 |
| Gasket | Arnitel EP 400 |
| Rod: | Moplen + Rubber 50 Sh. |
| Net Weight (g): | 180 |
| Base Dimensions ( mm ): | Lenght: 95 Width: 52 |
| Mounting Hole | Squred: 15*15 – Round: Ø 19 |
FREQUENCIES AVAILABLE:
GPS – GNSS – GALILEO / TETRA 340 ÷ 380 MHz – Datasheet
GPS – GNSS – GALILEO / TETRA 380 ÷ 410 MHz – Datasheet
GPS – GNSS – GALILEO / TETRA 380 ÷ 430 MHz – Datasheet
GPS – GNSS – GALILEO / TETRA 380 ÷ 430 MHz – Datasheet
GPS – GNSS – GALILEO / TETRA 380 ÷ 430 MHz – Datasheet
GPS – GNSS – GALILEO / TETRA 410 ÷ 470 MHz – Datasheet
GPS – GNSS – GALILEO / TETRA 380 ÷ 410 MHz / AM – FM – Datasheet
GPS – GNSS – GALILEO / TETRA 380 ÷ 430 MHz / GSM-UMTS-LTE – Datasheet
GPS – GNSS – GALILEO / GSM-UMTS-LTE / FM / DAB – Datasheet
GPS – GNSS – GALILEO / TETRA 380 – 430 MHz / LTE / 2.4-5.8 GHz – Datasheet
GPS – GNSS – GALILEO / TETRA 430 – 470 MHz / LTE / 2.4-5.8 GHz – Datasheet
NOTE :
Any other frequencies can be available at request
All the antennas can be supplied with customized extension cables

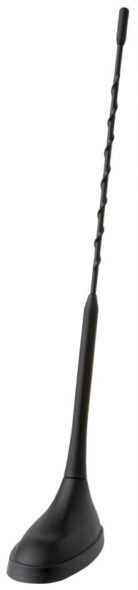

MOBILE ANTENNA with 5/8 l ROD
| MATERIAL | |
| Cap | Polyamide 6 |
| Gasket | Arnitel EP 400 |
| Rod: | Pibiflex 2564 |
| Base Dimensions (mm): | Lenght: 95 Width: 52 |
| :Mounting Hole | Squred: 15*15 – Round: Ø 19 |
| Temperature (°C) | -30° ÷ +80° |
FREQUENCIES AVAILABLE:
GPS-GNSS-GALILEO / 156÷163 MHz – Datasheet
GPS-GNSS-GALILEO / 164÷174 MHz – Datasheet – Datasheet – Datasheet
GPS-GNSS-GALILEO / VHF 130÷230 MHz / UHF 380÷500 MHz / – Datasheet
GPS-GNSS-GALILEO / AM – FM / 380 ÷ 400 MHz – Datasheet
GPS / AM – FM / UHF 380 ÷ 470 MHz – Datasheet
ANTENNAS WITH STAINLESS STEEL ROD
GPS-GNSS-GALILEO / GSM-UMTS / TETRA 382 MHz with stailess steel rod – Datasheet
GPS-GNSS-GALILEO / GSM-UMTS / 380 ÷ 410 MHz with stailess steel rod – Datasheet
GPS-GNSS-GALILEO/ LTE / 130÷230 MHz with stainless steel rod – Datasheet
GPS-GNSS-GALILEO / LTE / TETRA 382 MHz with stailess steel rod – Datasheet
GPS-GNSS-GALILEO / LTE / 2.4 – 5.8 GHz / TETRA 382 MHz with stailess steel rod – Datasheet
ANTENNAS WITH DIPLEXER
GPS / 76.7÷79.2 / 380÷410MHz with diplexer – Datasheet
GPS / 76.7÷79.2 / 434÷445 MHz with diplexer – Datasheet
GPS / VHF 150÷174 MHz / UHF 380÷400 MHz with DIPLEXER – Datasheet – Datasheet
GPS / GPRS-UMTS / VHF 150÷174 MHz / UHF 380 ÷ 400 MHz with DIPLEXER – Datasheet
GPS-GNSS-GALILEO / LTE / 74 ÷ 82 MHz / 380 ÷ 410 MHz with tunable diplexer – Datasheet
GPS-GNSS-GALILEO / LTE / 76.7 ÷ 79.2 MHz / 380 ÷ 400 MHz with tunable diplexer – Datasheet
NOTE :
Any other frequencies can be available at request
All the antennas can be supplied with customized extension cables

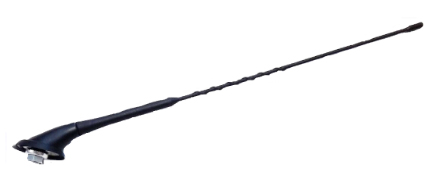

28° FRONT MOUNTING ANTENNA
| MATERIAL | |
| Cap | Polyamide 6 |
| Gasket | Arnitel EP 400 |
| Rod: | Pibiflex 2564 |
| Base Dimensions ( mm ): | Lenght: 60 Width: 45 |
| Mounting Hole | Squred: 15*15 – Round: Ø 19 |
| Temperature (°C): | -30° ÷ + 80° |

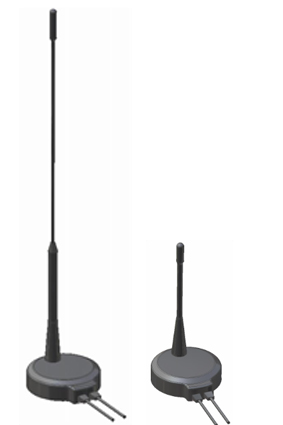

MOBILE ANTENNA WITH DIPLEXER FOR PROFESSIONAL USES
| MATERIAL | |
| Base | Brass (white galvanizing) / Nylon |
| Rod | Fiberglass |
| Base Dimensions (mm): | Diameter: 40 Height: 55 |
| Base Dimensions (mm): | Lenght: 95 Width: 52 |
| :Mounting Hole | Round: Ø 25 |
| Temperature (°C) | -30° ÷ +80° |
FREQUENCIES AVAILABLE:
76.7÷79.2 / 380 ÷ 430 MHz with diplexer – Datasheet

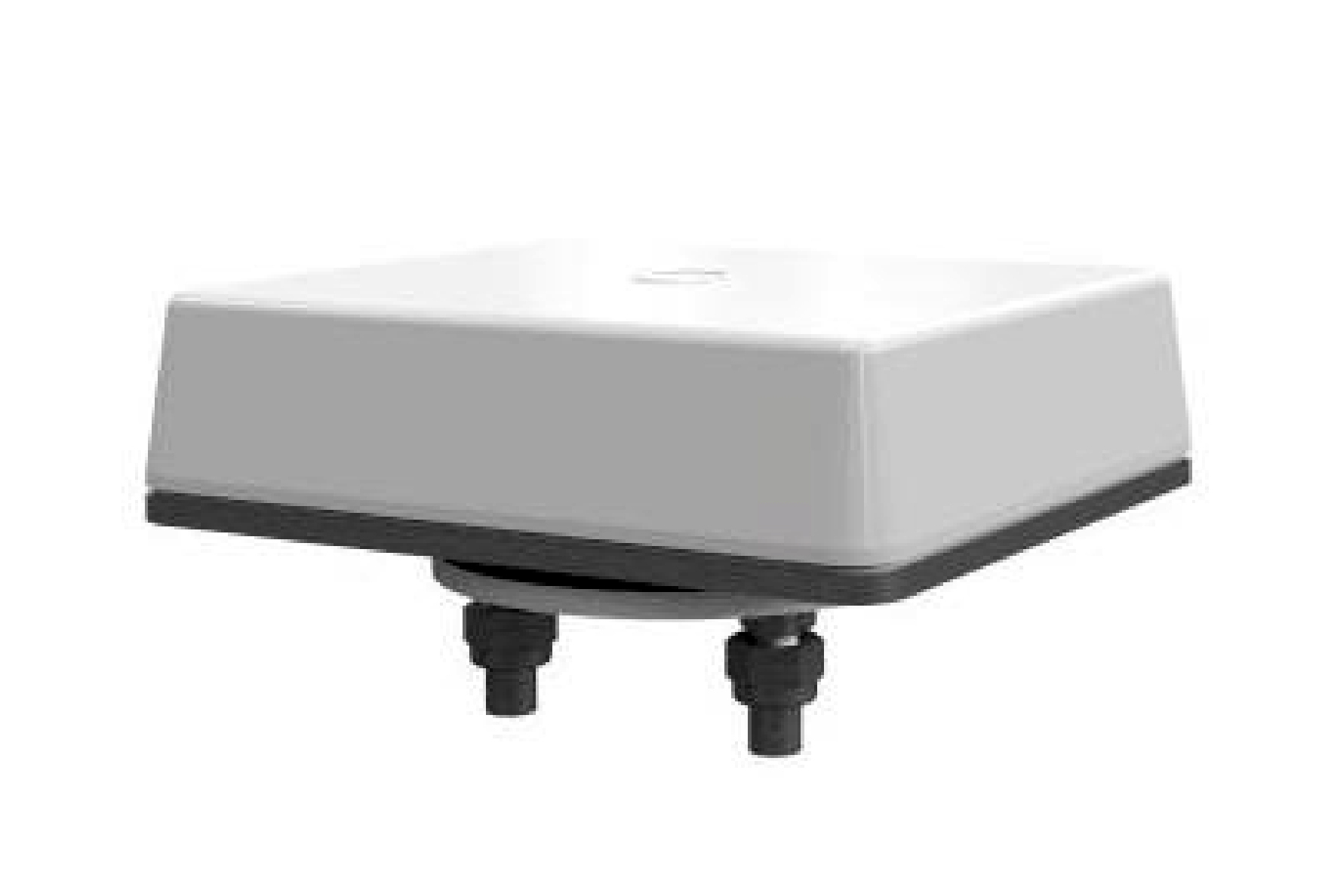

MIMO ANTENNAS
| SPECIFICATIONS | |
| Material | |
| Base: | Alumium alloy EN AW-6082 |
| Radome: | ABS Gray |
| Screw and Nuts | Stainless Steel |
| Dimensions (mm): | 162x142x45 |
| Temperature: | -40° ÷ +80° C |
| Mounting: | Vertical or Orizontal |
| Fixing: | According to FEDERTRASPORTI 00104/5 |
